(55.988.AM) - SELECTIVE CATALYTIC, REDUCTION, INJECTOR, EMISSIONS

Запчасти Case AR-4JJ1XASS01-02 (55.988.AM) - SELECTIVE CATALYTIC, REDUCTION, INJECTOR, EMISSIONS (55) - ELECTRICAL SYSTEMS

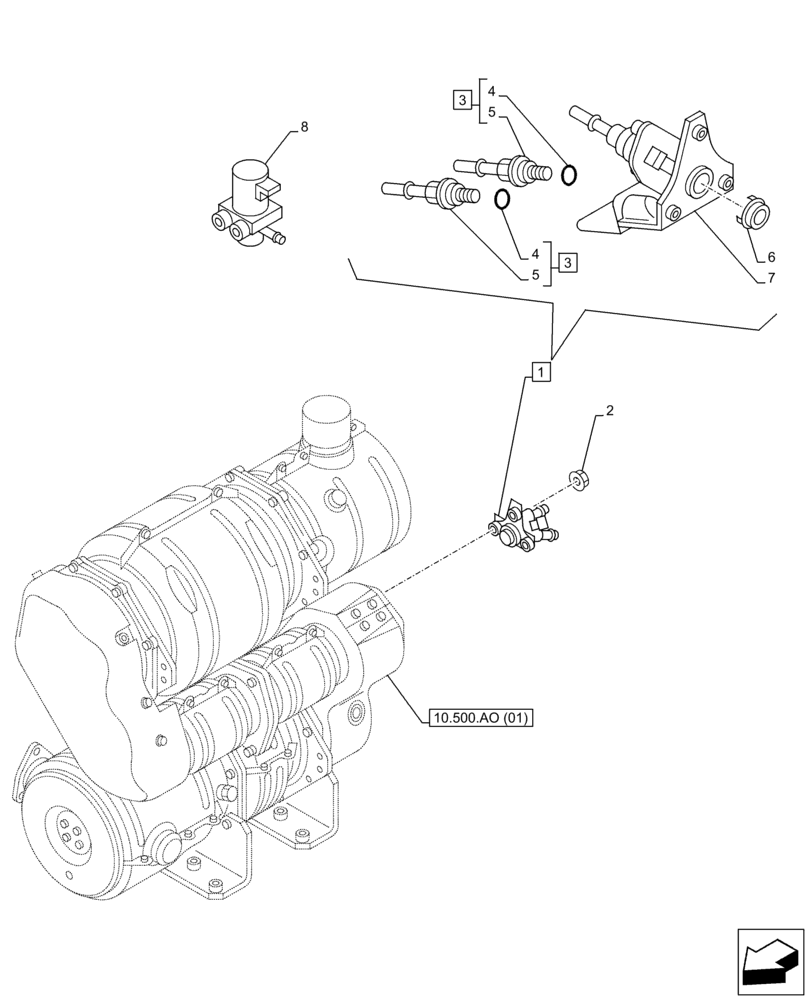

Схема запчастей Case AR-4JJ1XASS01-02 - (55.988.AM) - SELECTIVE CATALYTIC, REDUCTION, INJECTOR, EMISSIONS (55) - ELECTRICAL SYSTEMS
8
1
2
3
7
4
3
5
4
10.500.ao (01)
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47703179

INJECTOR, EMISSIONS

ASSY, Incl 3 - 7

1шт.

2

87596880

NUT

3шт.

3

47703162

FITTING

ASSY, Incl 4, 5

2шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

6

47703118

GASKET

1шт.

7

NSS

NOT SOLD SEPARAT

Def Dcm Injector, Incl in 1

1шт.

8

47703095

VALVE

1шт.
