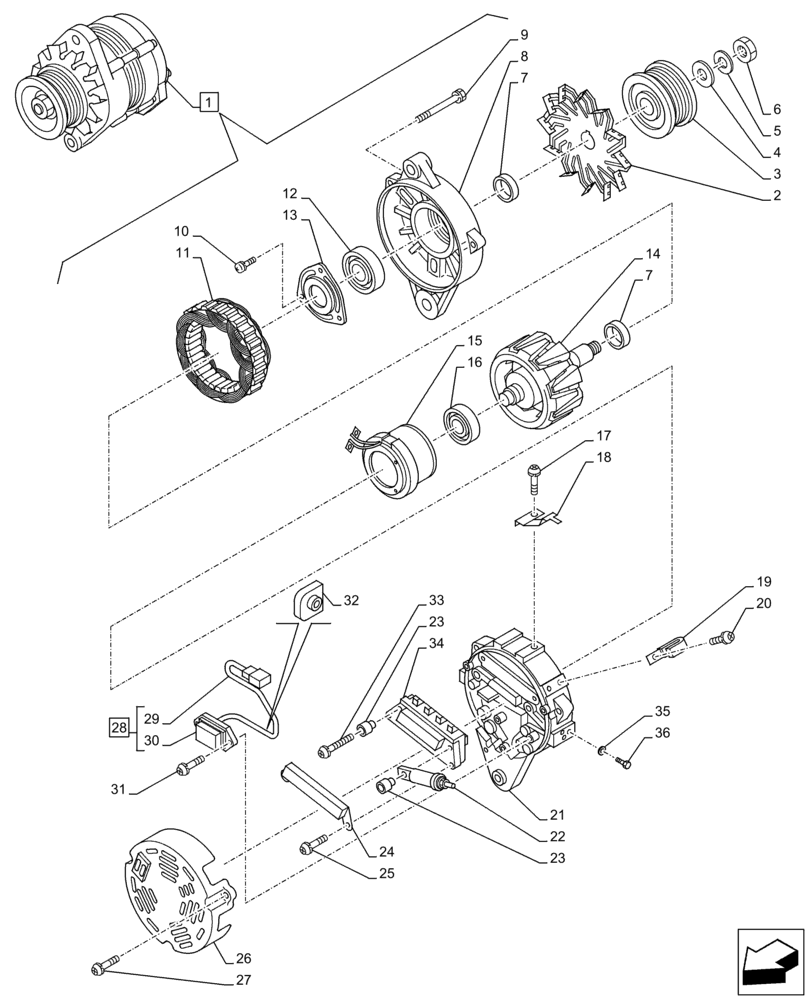

Запчасти Case AR-4JJ1XASS01-02 (55.301.AA[02]) - ALTERNATOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87709229

ALTERNATOR

ASSY, Incl 2 - 36

1шт.

2

NSS

NOT SOLD SEPARAT

Fan, Incl in 1

1шт.

3

84592811

PULLEY

1шт.

4

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

2шт.

8

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

3шт.

10

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

3шт.

11

NSS

NOT SOLD SEPARAT

Stator, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Retainer, Incl in1

1шт.

14

NSS

NOT SOLD SEPARAT

Rotor, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Coil, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Holder, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Clip, Incl in1

1шт.

20

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Rectifier Bolt, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

2шт.

24

NSS

NOT SOLD SEPARAT

Condenser, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

26

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

3шт.

28

84123482

REGULATOR

ASSY, Incl 29, 30

1шт.

29

NSS

NOT SOLD SEPARAT

Terminal, Incl in 28

1шт.

30

NSS

NOT SOLD SEPARAT

Voltage Generator, Incl in 28

1шт.

31

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

32

NSS

NOT SOLD SEPARAT

Rubber, Incl in 1

1шт.

33

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

2шт.

34

84123483

COVER

1шт.

35

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

36

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.
