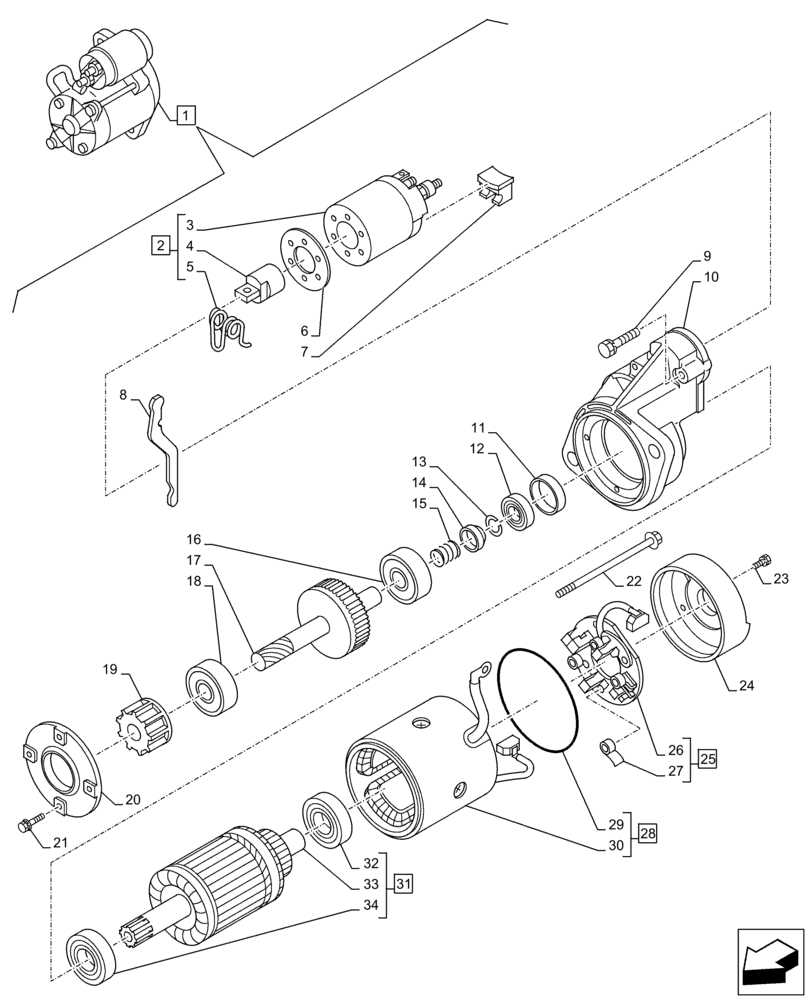

Запчасти Case AR-4JJ1XASS01-02 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87560087

STARTER MOTOR

ASSY, Incl 2 - 34

1шт.

1

87560087R

REMAN-STARTER

1шт.

1

87560087C

CORE-STARTER

Return Number

1шт.

2

84592850

SWITCH

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Solenoid Switch, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Clutch, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Gear Starter Shaft, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

4шт.

22

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

2шт.

23

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

24

NSS

NOT SOLD SEPARAT

Cover Starter, Incl in 1

1шт.

25

84592848

HOLDER

ASSY, Incl 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Brush Starter, Incl in 25

1шт.

27

NSS

NOT SOLD SEPARAT

Spring, Incl in 25

4шт.

28

84592844

HOUSING

ASSY, Incl 29, 30

1шт.

29

NSS

NOT SOLD SEPARAT

Gasket, Incl in 28

1шт.

30

NSS

NOT SOLD SEPARAT

Starter Yoke, Incl in 28

1шт.

31

84592845

ARMATURE

ASSY, Incl 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

Bearing, Incl in 31

1шт.

33

NSS

NOT SOLD SEPARAT

Starter Armature, Incl in 31

1шт.

34

NSS

NOT SOLD SEPARAT

Bearing, Incl in 31

1шт.
