(10.001.050) - ENGINE, GASKET, SET

Запчасти Case AQ-6WG1XASS11 (10.001.050) - ENGINE, GASKET, SET (10) - ENGINE

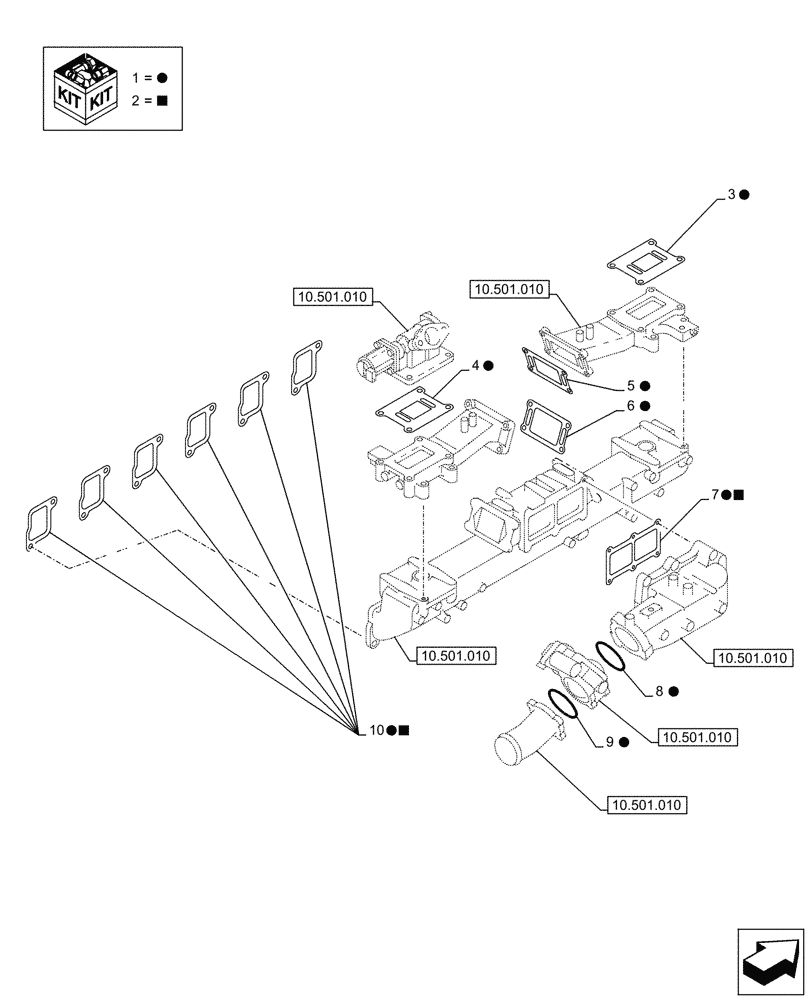

Схема запчастей Case AQ-6WG1XASS11 - (10.001.050) - ENGINE, GASKET, SET (10) - ENGINE
10.501.010
2
1
1
9
5
1
1
2
1
1
1
3
4
1
2
8
1
2
10
6
7
1
10.501.010
10.501.010
10.501.010
10.501.010
10.501.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48089825

GASKET

ASSY, Gasket Kit Incl 3 - 10

1шт.

See also Figure 10.001.020, 10.001.040, 10.001,030, 10.001.060, 10.001.070

1шт.

2

48089824

GASKET

ASSY, Gasket Kit Incl 7, 10

2шт.

See also Figure 10.001.020, 10.001,030, 10.001.060, 10.001.070

1шт.

3

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1, 2

1шт.

8

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1, 2

1шт.
