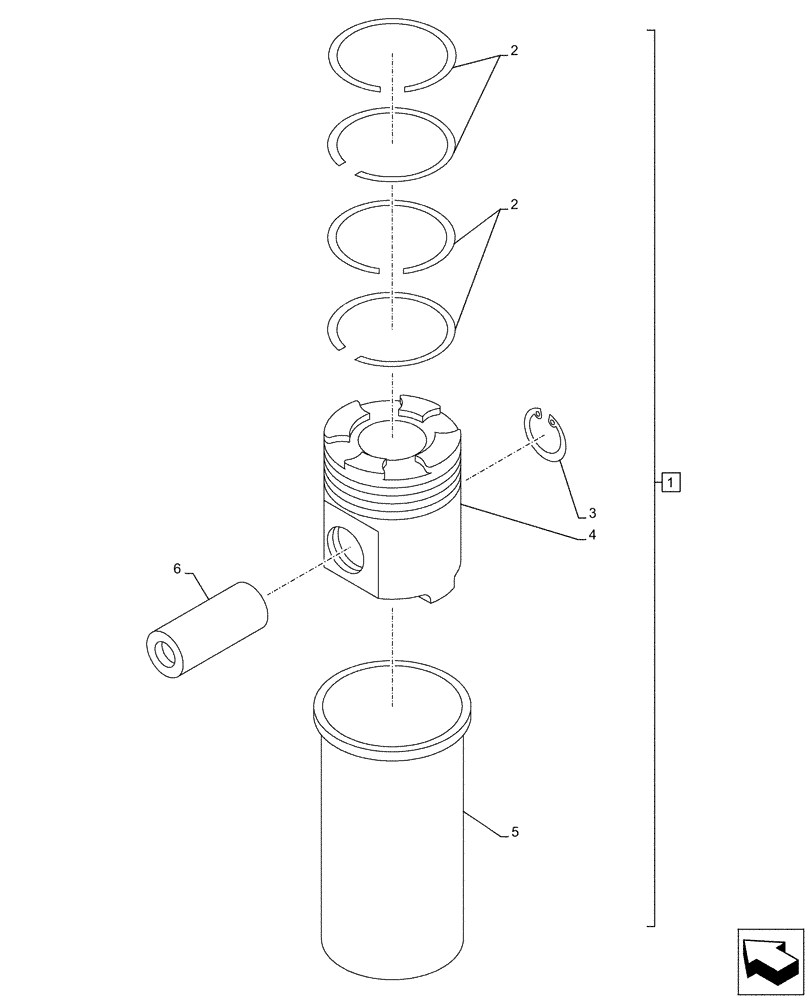

Запчасти Case AQ-6UZ1XASS01 (10.105.AG[02]) - ENGINE, PISTONS (10) - ENGINE
![Схема запчастей Case AQ-6UZ1XASS01 - (10.105.AG[02]) - ENGINE, PISTONS (10) - ENGINE](https://partsell.ru/storage/images/casece/5394738.png)
5
1
4
3
6
2
2
№
Артикул
Название
Примечание
Количество
1
47921203
LINER, ENGINE CYLIND
ASSY, Grade = 3X, Incl 2 - 6
6шт.
1
47921201
LINER, ENGINE CYLIND
ASSY, Grade = 1X, Incl 2 - 6
6шт.
2
NSS
NOT SOLD SEPARAT
Ring, Incl in 1
6шт.
3
NSS
NOT SOLD SEPARAT
Snap Ring, Incl in 1
6шт.
4
NSS
NOT SOLD SEPARAT
Piston, Incl in 1
6шт.
5
84477590
SLEEVE CYLINDER
OD = 1X ID = 120.000mm to 120.020mm
6шт.
5
84477064
SLEEVE CYLINDER
OD = 1X ID = 120.021mm to 120.042mm
6шт.
5
84477073
SLEEVE CYLINDER
OD = 3X ID = 120.000mm to 120.020mm
6шт.
5
84477086
SLEEVE CYLINDER
OD = 3X ID = 120.021mm to 120.042mm
6шт.
6
NSS
NOT SOLD SEPARAT
Pin, Incl in 1
6шт.
Выбрано товаров: 10
