Запчасти Case AQ-6UZ1XASS01 (10.001.AD[02]) - ENGINE, GASKET, SET (10) - ENGINE

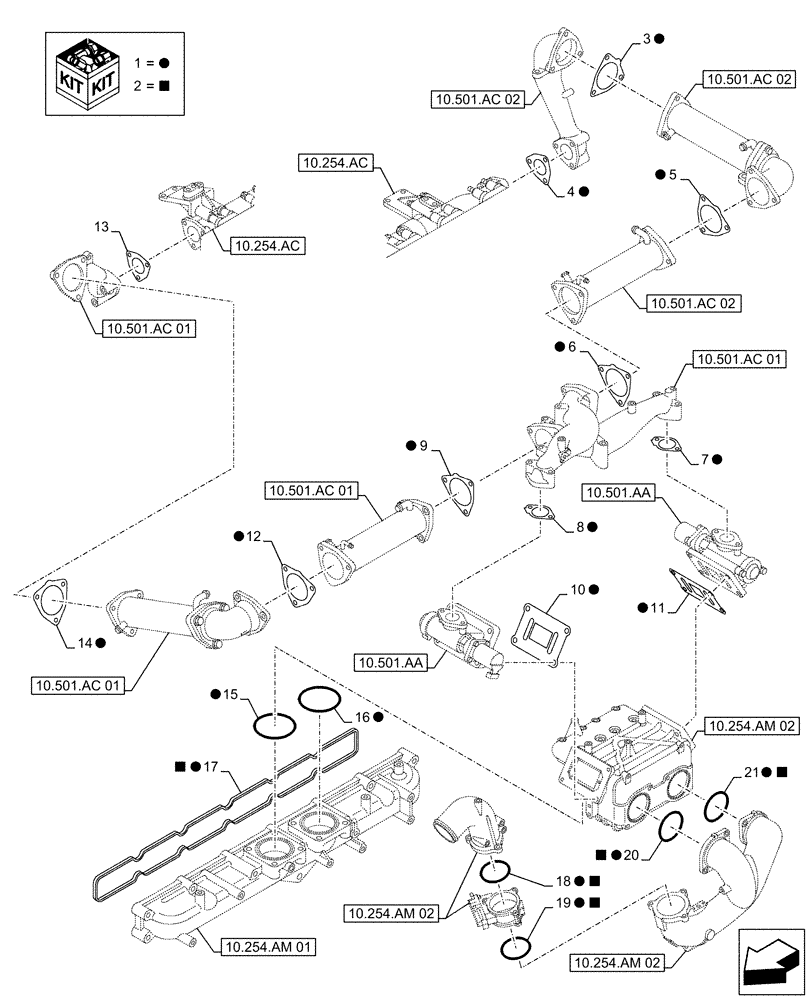

![Схема запчастей Case AQ-6UZ1XASS01 - (10.001.AD[02]) - ENGINE, GASKET, SET (10) - ENGINE](https://partsell.ru/storage/images/casece/5394408.png)
№
Артикул
Название
Примечание
Количество
1
47921289
ENGINE OVERHAUL KIT
ASSY, Gasket Set, Incl 3 - 21
1шт.
See also Figure 10.001.AD 03, 10.001.AD 04, 10.001.AD 05, 10.001.AD 06, 10.00A.AD 07, 10.001.AD 08, 10.001.AD 09
1шт.
2
47921290
KIT, ENGINE TOP GASK
ASSY, Gasket Set, Incl 17 - 21
2шт.
See also Figure 10.001.AD 03, 10.001.AD 04, 10.001.AD 05, 10.001.AD 06, 10.00A.AD 07, 10.001.AD 08
1шт.
3
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
4
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
5
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
6
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
7
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
8
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
9
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
10
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
11
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
12
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
13
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
14
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
15
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
16
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
17
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
18
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
19
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
20
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
21
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
Выбрано товаров: 23
