(55.988.AM) - SELECTIVE CATALYTIC REDUCTION, INJECTOR, EMISSIONS

Запчасти Case AQ-6UZ1XASS01 (55.988.AM) - SELECTIVE CATALYTIC REDUCTION, INJECTOR, EMISSIONS (55) - ELECTRICAL SYSTEMS

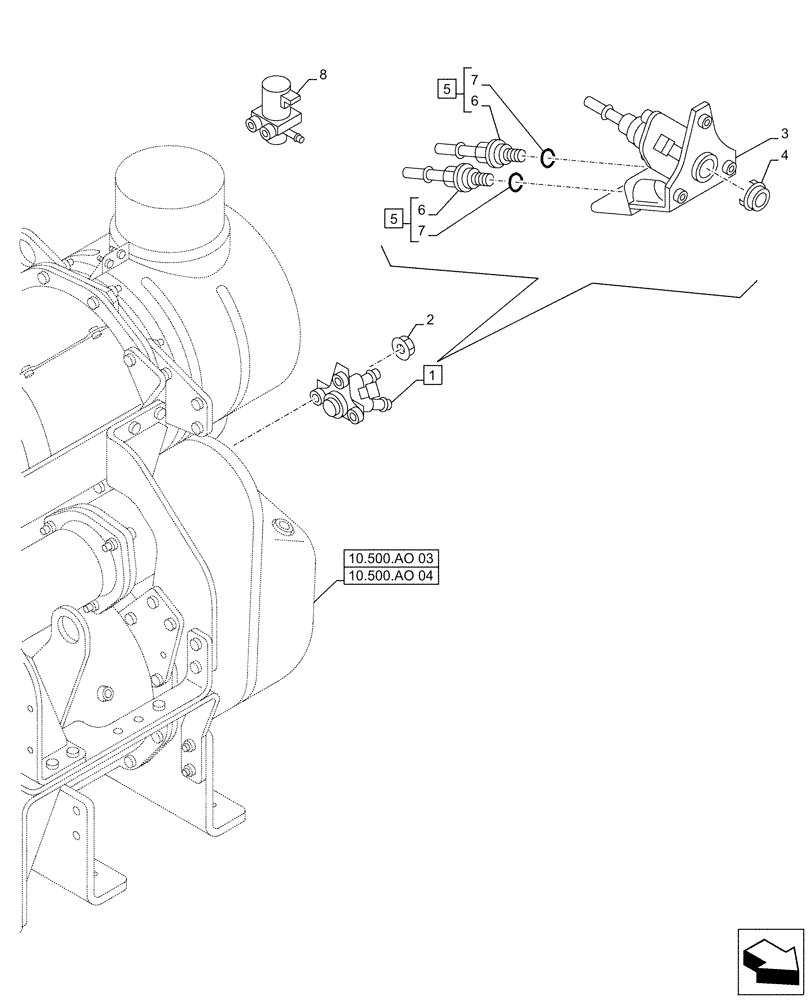

Схема запчастей Case AQ-6UZ1XASS01 - (55.988.AM) - SELECTIVE CATALYTIC REDUCTION, INJECTOR, EMISSIONS (55) - ELECTRICAL SYSTEMS
10.500.ao 04
8
4
7
6
5
7
6
3
5
2
1
10.500.ao 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47703179

INJECTOR, EMISSIONS

ASSY, Incl 3 - 7

1шт.

2

87596880

NUT

3шт.

3

NSS

NOT SOLD SEPARAT

Def Dcm Injector, Incl in 1

1шт.

4

47703118

GASKET

1шт.

5

47703162

FITTING

ASSY, Incl 6, 7

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 5

2шт.

8

47703095

VALVE

1шт.
