(55.988.AG) - SELECTIVE CATALYTIC, REDUCTION, NOX SENSOR

Запчасти Case AQ-6UZ1XASS01 (55.988.AG) - SELECTIVE CATALYTIC, REDUCTION, NOX SENSOR (55) - ELECTRICAL SYSTEMS

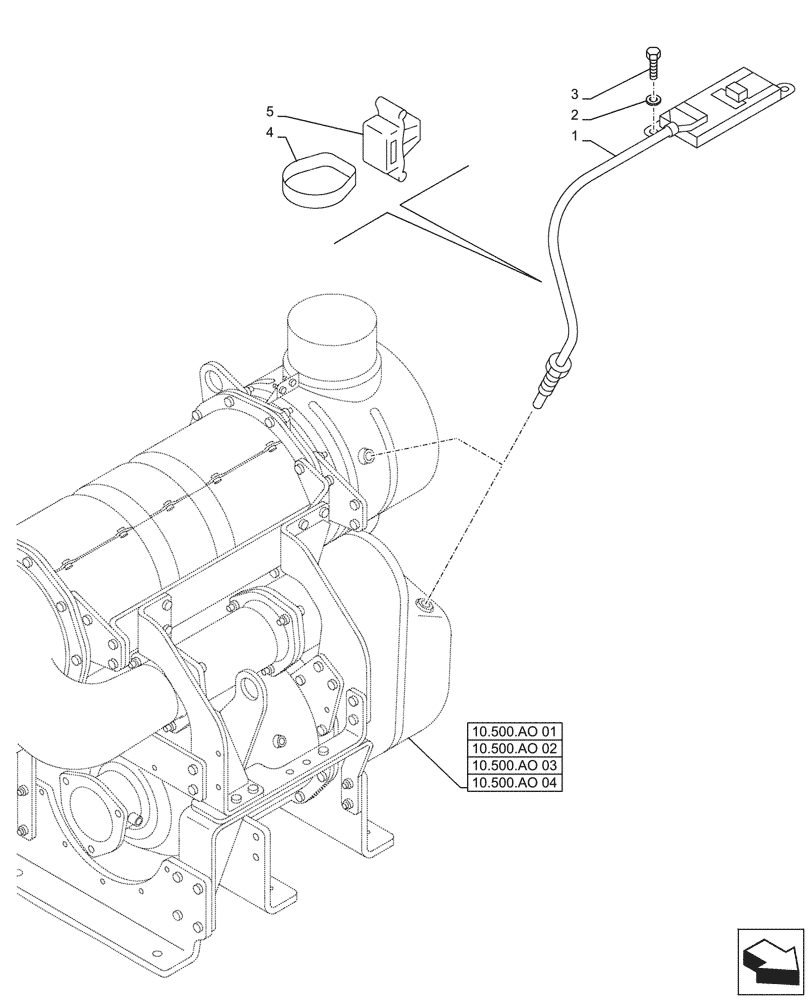

Схема запчастей Case AQ-6UZ1XASS01 - (55.988.AG) - SELECTIVE CATALYTIC, REDUCTION, NOX SENSOR (55) - ELECTRICAL SYSTEMS
10.500.ao 01
3
1
4
5
2
10.500.ao 04
10.500.ao 03
10.500.ao 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47866868

SENSOR

Nox Sensor

2шт.

CX490D LC, RTC (NA) Models Only

1шт.

1

47866868

SENSOR

Nox Sensor

2шт.

CX500D LC, RTC (NA) (EU) (MEA) Models Only

1шт.

2

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

3

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

4

150496A1

MOUNTING CLIP

1шт.

5

KHR10220

MOUNTING CLIP

1шт.
