(55.988.AF) - DEF/ADBLUE™, ELECTRONIC CONTROL UNIT

Запчасти Case AQ-6UZ1XASS01 (55.988.AF) - DEF/ADBLUE™, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

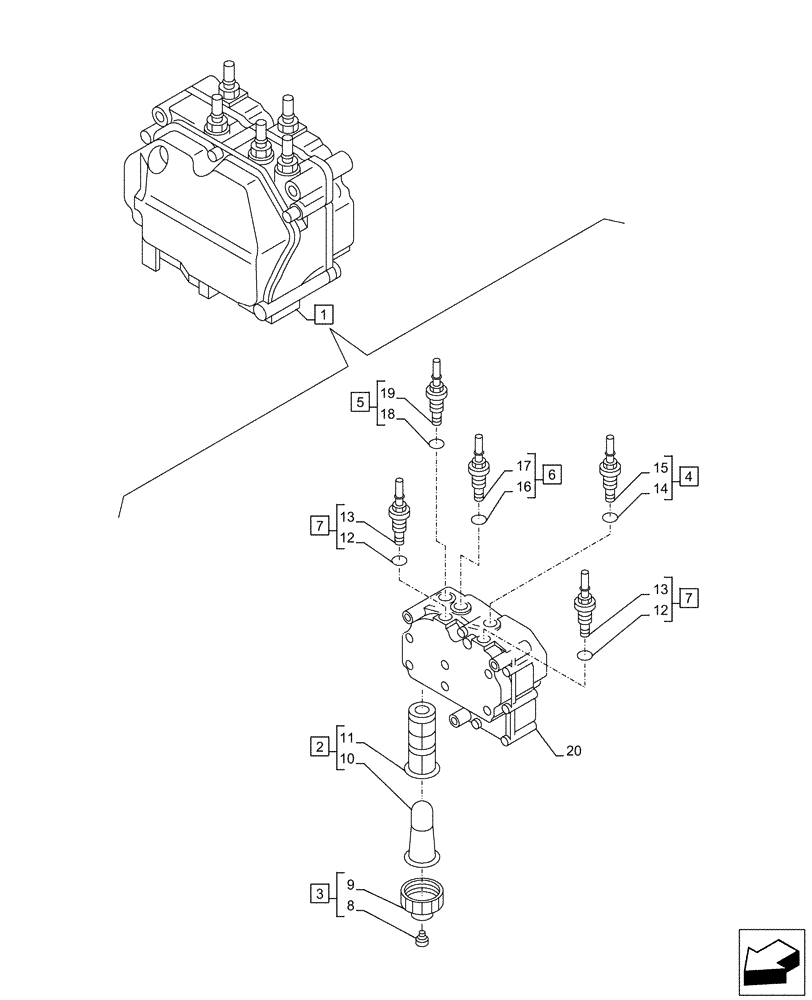

Схема запчастей Case AQ-6UZ1XASS01 - (55.988.AF) - DEF/ADBLUE™, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS
20
7
16
1
10
2
9
13
12
15
5
11
7
17
14
8
4
3
18
19
6
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47703176

PUMP

ASSY, Incl 2 - 20

1шт.

2

47703146

FILTER

ASSY, Supply Module, Incl 10, 11

1шт.

3

47703147

COVER

ASSY, Incl 8, 9

1шт.

4

47703148

FITTING

ASSY, Incl 14, 15

1шт.

5

47703151

FITTING

ASSY, Incl 18, 19

1шт.

6

47703157

FITTING

ASSY, Incl 16, 17

1шт.

7

47703160

FITTING

ASSY, Incl 12, 13

2шт.

8

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

9

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Filter, Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Filter, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 7

2шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 4

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 6

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 5

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

20

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.
