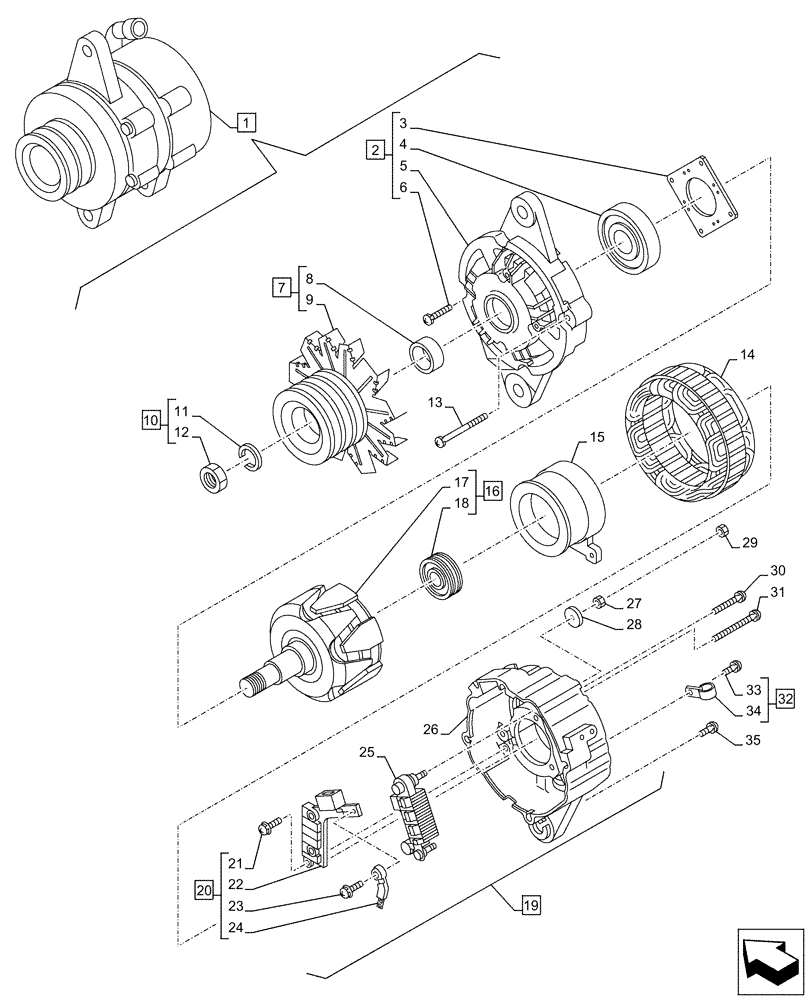

Запчасти Case AQ-6UZ1XASS01 (55.301.AA[02]) - ALTERNATOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

438007A1

ALTERNATOR

ASSY, Incl 2 - 35

1шт.

2

426807A1

COVER

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

1шт.

4

426802A1

BALL BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

6

426812A1

SCREW

1шт.

7

47709196

PULLEY

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing, Incl in 7

1шт.

9

NSS

NOT SOLD SEPARAT

Pulley, Incl in 7

1шт.

10

426814A1

NUT

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Gasket, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Nut, Incl in 10

1шт.

13

426815A1

BOLT

1шт.

14

426809A1

STATOR

1шт.

15

NSS

NOT SOLD SEPARAT

Stator Coil, Incl in 1

1шт.

16

426801A1

ROTOR

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Rotor, Incl in 16

1шт.

18

426803A1

BALL BEARING

1шт.

19

438008A1

COVER

ASSY, Incl 20 - 28

1шт.

20

426804A1

REGULATOR

ASSY, Incl 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

Screw, Incl in 20

1шт.

22

NSS

NOT SOLD SEPARAT

Regulator, Incl in 20

1шт.

23

NSS

NOT SOLD SEPARAT

Screw, Incl in 20

1шт.

24

NSS

NOT SOLD SEPARAT

Regulator, Incl in 20

1шт.

25

438009A1

RECTIFIER

1шт.

26

NSS

NOT SOLD SEPARAT

Cover, Incl in 19

1шт.

27

NSS

NOT SOLD SEPARAT

Nut, Incl in 19

1шт.

28

NSS

NOT SOLD SEPARAT

Gasket, Incl in 19

1шт.

29

438011A1

NUT

1шт.

30

426813A1

SCREW

1шт.

31

438012A1

SCREW

1шт.

32

438014A1

CLAMP

ASSY, Incl 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

Screw, Incl in 32

1шт.

34

NSS

NOT SOLD SEPARAT

Clamp, Incl in 32

1шт.

35

438013A1

SCREW

1шт.
