(55.201.AE[02]) - STARTER MOTOR, COMPONENTS

Запчасти Case AQ-6UZ1XASS01 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

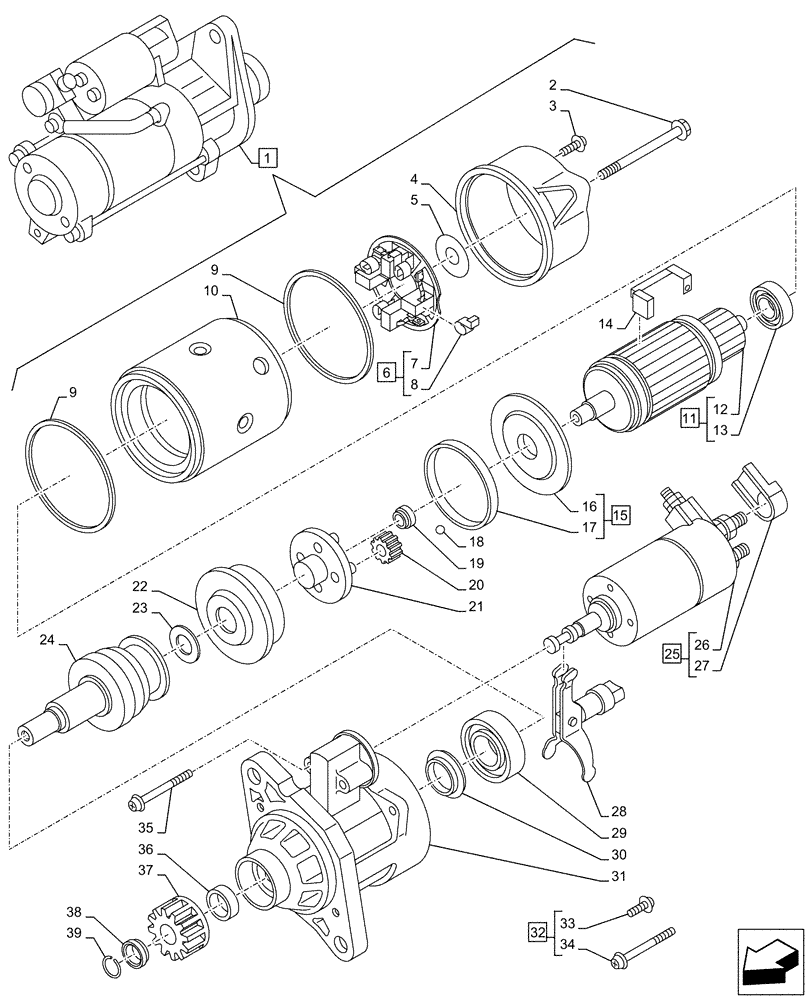

Схема запчастей Case AQ-6UZ1XASS01 - (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS
18
35
8
30
2
23
3
38
16
7
20
17
29
5
26
28
10
12
9
25
37
31
14
1
24
34
4
9
15
33
36
39
6
13
32
21
22
27
19
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47921206

STARTER MOTOR

ASSY, Incl 2 - 39

1шт.

2

426694A1

BOLT

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

6

47963479

BRUSH HOLDER

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Brush Holder, Incl in 6

1шт.

8

47963478

SPRING

4шт.

9

47963481

GASKET

2шт.

10

47963473

YOKE

1шт.

11

47963476

ARMATURE

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Armature, Incl in 11

1шт.

13

438001A1

BALL BEARING

1шт.

14

47963477

COMMUTATOR BRUSH

1шт.

15

47963483

GASKET

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Front Case, Incl in 15

1шт.

17

NSS

NOT SOLD SEPARAT

Gasket, Inl in 15

1шт.

18

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Clutch Starter Gear, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Sarter Pinion Clutch, Incl in 1

1шт.

25

47963480

IGNITION SWITCH

ASSY, Incl 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Engage Starter Switch, Incl in 25

1шт.

27

47963482

COVER

1шт.

28

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

32

47963485

KIT

ASSY, Incl 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

Bolt, Incl in 32

1шт.

34

NSS

NOT SOLD SEPARAT

Bolt, Incl in 32

1шт.

35

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

36

NSS

NOT SOLD SEPARAT

Gasket, Inl in 1

1шт.

37

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

38

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

39

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.
