(55.988.AM) - SELECTIVE CALTALYTIC, REDUCTION, INJECTOR, EMISSIONS

Запчасти Case AQ-6HK1XASS01-02 (55.988.AM) - SELECTIVE CALTALYTIC, REDUCTION, INJECTOR, EMISSIONS (55) - ELECTRICAL SYSTEMS

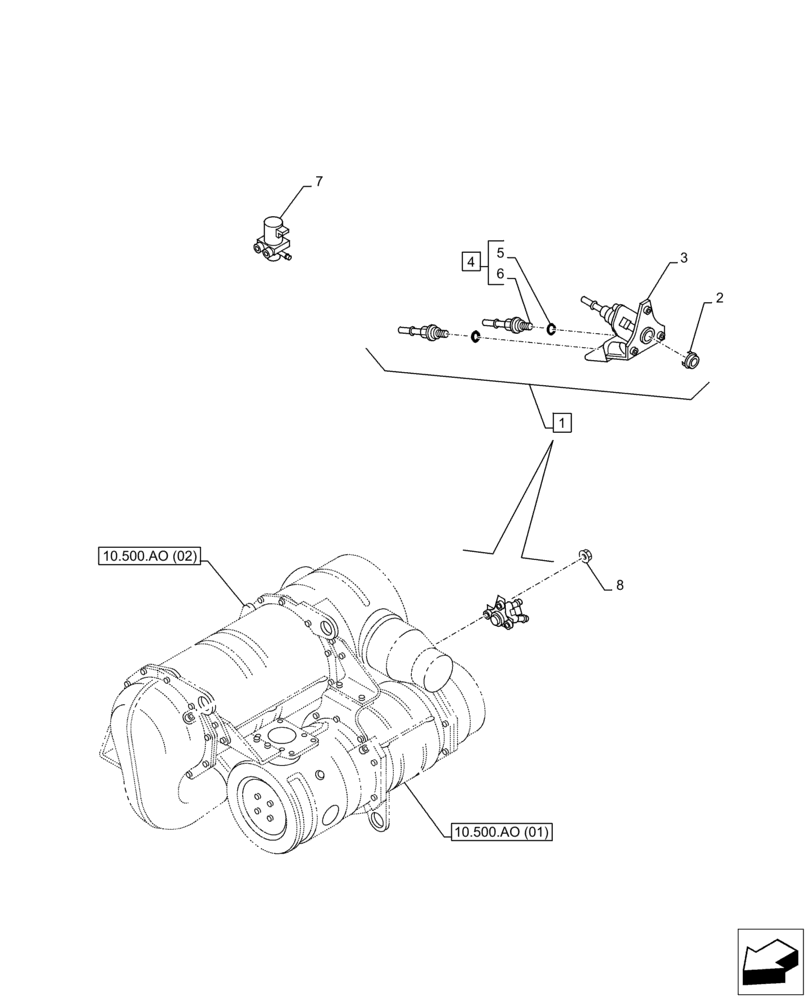

Схема запчастей Case AQ-6HK1XASS01-02 - (55.988.AM) - SELECTIVE CALTALYTIC, REDUCTION, INJECTOR, EMISSIONS (55) - ELECTRICAL SYSTEMS
10.500.ao (01)
2
7
8
1
10.500.ao (02)
4
3
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47703179

INJECTOR, EMISSIONS

ASSY, Injector, Incl 2 - 6

1шт.

2

47703118

GASKET

1шт.

3

NSS

NOT SOLD SEPARAT

Def Dcm Injector, Incl in 1

1шт.

4

47703162

FITTING

ASSY, Connector, Incl 5, 6

2шт.

5

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

7

47703095

VALVE

1шт.

8

87596880

NUT

3шт.
