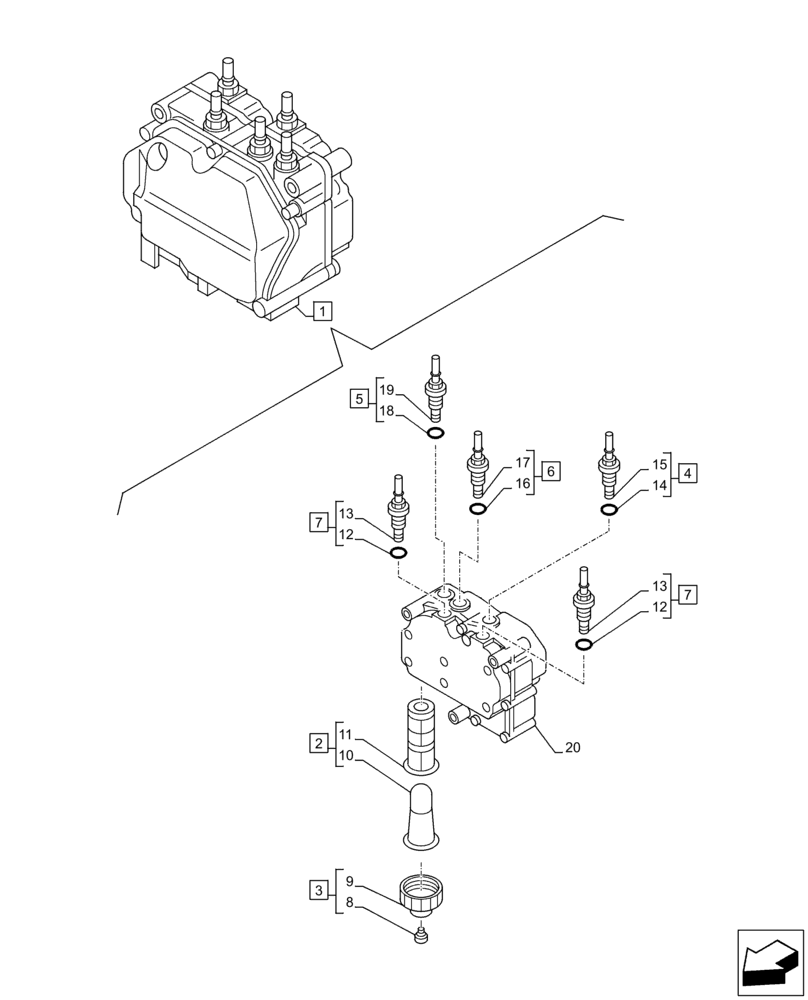

Запчасти Case AQ-6HK1XASS01-02 (55.988.AF) - DEF/ADBLUE™, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

47703176

PUMP

ASSY, Def.Dcm Sply Pump, Incl 2 - 20

1шт.

2

47703146

FILTER

ASSY, Supply Module, Def.Dcm Sply Filter, Incl 10, 11

1шт.

3

47703147

COVER

ASSY, Def.Dcm Sply Cover, Incl 8, 9

1шт.

4

47703148

FITTING

ASSY, Inlet Pump Connector, Incl 14, 15

1шт.

5

47703151

FITTING

ASSY, Outlet Pum connector, Incl 18, 19

1шт.

6

47703157

FITTING

ASSY, Return Pump Connector, Incl 16, 17

1шт.

7

47703160

FITTING

ASSY, Coolant Pump Connector, Incl 12, 13

2шт.

8

NSS

NOT SOLD SEPARAT

Cap, Incl in 3

1шт.

9

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Filter, Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Filter, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 7

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 4

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 6

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 5

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

20

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.
