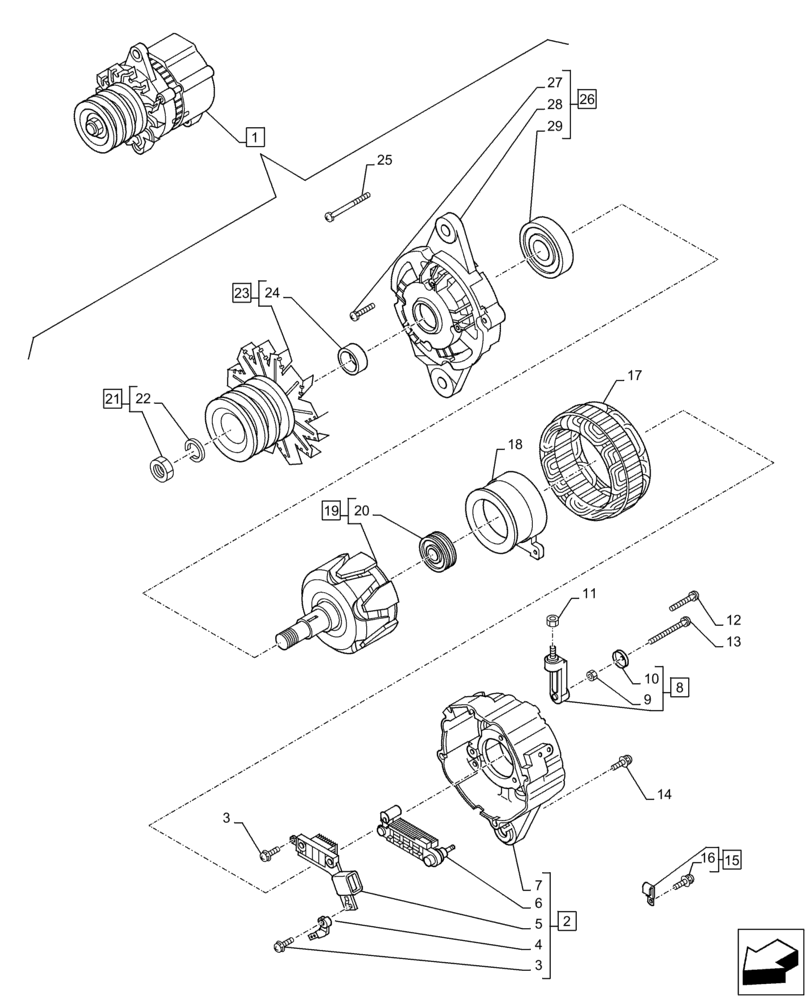

Запчасти Case AQ-6HK1XASS01-02 (55.301.AA[01]) - ALTERNATOR (25V/50A) (55) - ELECTRICAL SYSTEMS

1

438007A1

ALTERNATOR

ASSY, Alternator, Incl 2 - 29

1шт.

2

438008A1

COVER

ASSY, Regulator, Incl 3 - 7

1шт.

3

426804A1

REGULATOR

1шт.

4

NSS

NOT SOLD SEPARAT

Voltage Regulator, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Voltage Regulator, Incl in 2

1шт.

6

438009A1

RECTIFIER

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

ASSY, Rectifier Terminal, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Nut, Incl in 8

1шт.

10

NSS

NOT SOLD SEPARAT

Gasket, Incl in 8

1шт.

11

438011A1

NUT

1шт.

12

438012A1

SCREW

1шт.

13

426813A1

SCREW

1шт.

14

438013A1

SCREW

1шт.

15

438014A1

CLAMP

ASSY, Wire, Incl 16

1шт.

16

NSS

NOT SOLD SEPARAT

Clip, Incl in 15

1шт.

17

426809A1

STATOR

1шт.

18

47679143

1шт.

19

426801A1

ROTOR

ASSY, Rotor, Incl 20

1шт.

20

426803A1

BALL BEARING

1шт.

21

426814A1

NUT

ASSY, Pulley Nut Set, Incl 22

1шт.

22

NSS

NOT SOLD SEPARAT

Gasket, Incl in 21

1шт.

23

47709196

PULLEY

ASSY, Pulley, Incl 24

1шт.

24

NSS

NOT SOLD SEPARAT

Bearing, Incl in 23

1шт.

25

426815A1

BOLT

1шт.

26

426807A1

COVER

ASSY, Frt Cover, Incl 27 - 29

1шт.

27

426812A1

SCREW

1шт.

28

NSS

NOT SOLD SEPARAT

Frt Cover, Incl in 26

1шт.

29

426802A1

BALL BEARING

1шт.
