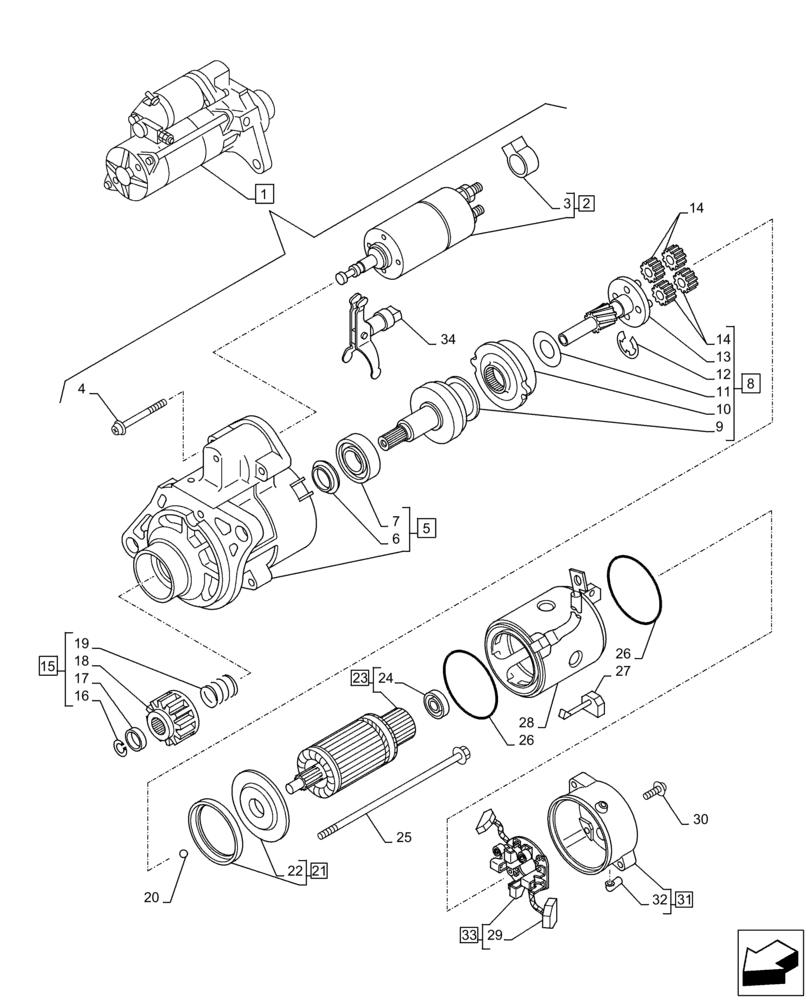

Запчасти Case AQ-6HK1XASS01-02 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

47678963

STARTER MOTOR

ASSY, Starter Motor, Incl 2 - 34

1шт.

2

47679095

PUSH BUTTON SWITCH

ASSY, Engage Starter Switch, Incl 3

1шт.

3

47679104

COVER

1шт.

4

47679132

SCREW

1шт.

5

NSS

NOT SOLD SEPARAT

ASSY, Starter Pinion Case, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Bearing, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

ASSY, Starter Pinion Clutch, Incl 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

Pinion Clutch, Incl in 8

1шт.

10

NSS

NOT SOLD SEPARAT

Clu Gear, Incl in 8

1шт.

11

NSS

NOT SOLD SEPARAT

Gear Shaft Washer, Incl in 8

1шт.

12

NSS

NOT SOLD SEPARAT

Gear Shaft Washer, Incl in 8

1шт.

13

NSS

NOT SOLD SEPARAT

Pinion Clutch, Incl in 8

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Incl in 8

4шт.

15

NSS

NOT SOLD SEPARAT

ASSY, Starter Clu Pinion, Incl 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

Stopper, Incl in 15

1шт.

17

NSS

NOT SOLD SEPARAT

Bearing, Incl in 15

1шт.

18

NSS

NOT SOLD SEPARAT

Clu Pinion, Incl in 15

1шт.

19

NSS

NOT SOLD SEPARAT

Spring, Incl in 15

1шт.

20

NSS

NOT SOLD SEPARAT

Ball

1шт.

21

NSS

NOT SOLD SEPARAT

ASSY, Frt Case Gasket, Incl 22

1шт.

22

NSS

NOT SOLD SEPARAT

FRT Case Gasket, Incl in 21

1шт.

23

437994A1

ROTOR

ASSY, Starter Armature, Incl 24

1шт.

24

438001A1

BALL BEARING

1шт.

25

NSS

NOT SOLD SEPARAT

Bolt

1шт.

26

437999A1

GASKET

2шт.

27

437992A1

BRUSH, COMMUTATOR

2шт.

28

47679089

YOKE

1шт.

29

438000A1

SPRING

4шт.

30

NSS

NOT SOLD SEPARAT

Screw

1шт.

31

437991A1

COVER

ASSY, Starter Cover, Incl 32

1шт.

32

47679139

GROMMET

1шт.

33

437993A1

BRUSH HOLDER

ASSY, Starter Brush Holder, Incl 29

1шт.

34

NSS

NOT SOLD SEPARAT

Shift Lever

1шт.
