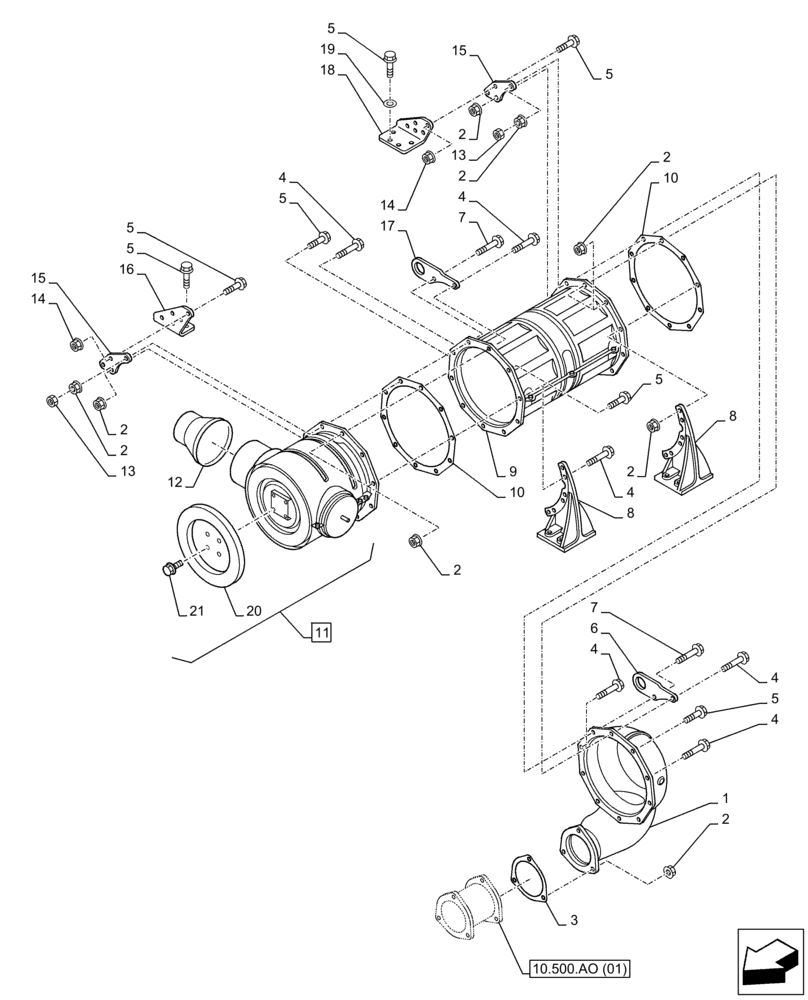

Запчасти Case AQ-6HK1XASS01-02 (10.500.AO[02]) - SELECTIVE CATALYTIC, REDUCTION, MUFFLER (10) - ENGINE

1

47709604

PIPE

1шт.

2

87384773

NUT

3шт.

3

47703127

GASKET

1шт.

4

47708551

BOLT

10шт.

5

47703043

BOLT

16шт.

6

47709168

BRACKET

1шт.

7

87596463

BOLT

2шт.

8

47709089

BRACKET

2шт.

9

47709626

CONVERTER

1шт.

10

47708949

GASKET

2шт.

11

47709260

MUFFLER

ASSY, Dpd Front Silencer, Incl 12, 20, 21, Serial Range: -NGS7N1137

1шт.

CX300D LC (NA), Models Only

1шт.

11

47709260

MUFFLER

ASSY, Dpd Front Silencer, Incl 12, 20, 21, Serial Range: -NGS7P1158

1шт.

CX350D LC (NA), Models Only

1шт.

11

48011606

MUFFLER

ASSY, Dpd Front Silencer, Incl 12, 20, 21, Start Serial: NGS7N1138

1шт.

CX300D LC (NA), Models Only

1шт.

11

48011606

MUFFLER

ASSY, Dpd Front Silencer, Incl 12, 20, 21, Start Serial: NGS7P1159

1шт.

CX350D LC (NA), Models Only

1шт.

12

NSS

NOT SOLD SEPARAT

Manifold, Incl in 11

1шт.

13

87596395

NUT

2шт.

14

426067A1

FLANGE NUT

4шт.

15

47708950

BRACKET

2шт.

16

47709151

BRACKET

1шт.

17

47709179

BRACKET

1шт.

18

47709141

BRACKET

1шт.

19

84387713

WASHER

2шт.

20

84388793

HEAT SHIELD

1шт.

21

87595952

BOLT

4шт.
