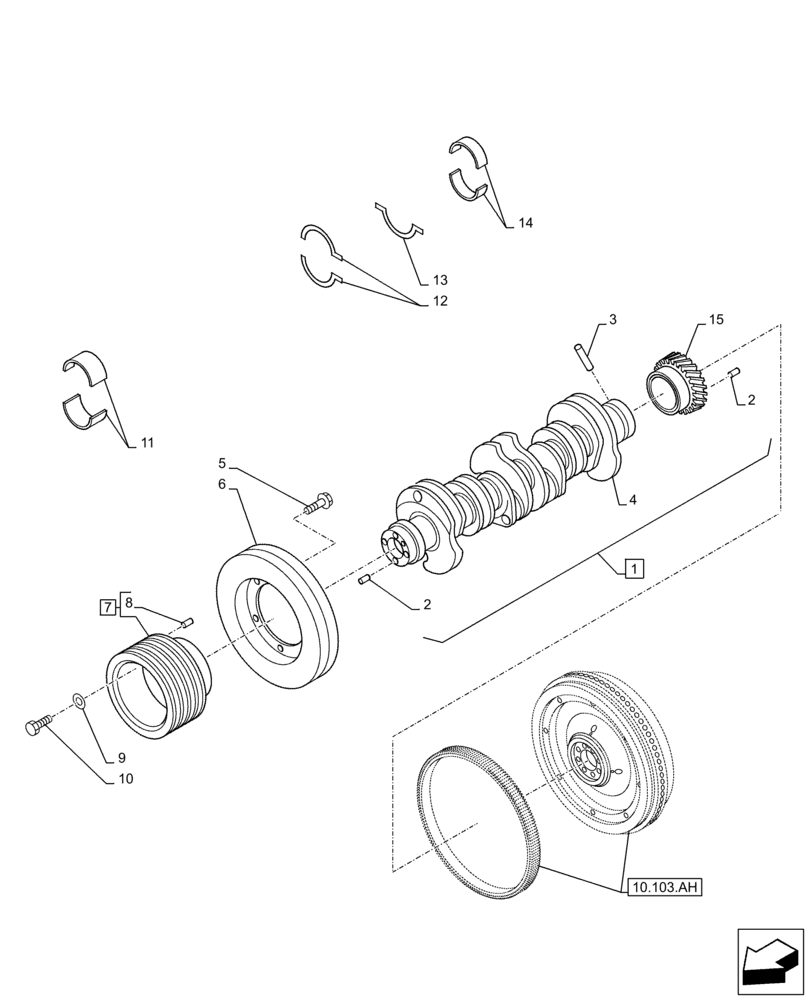

Запчасти Case AQ-6HK1XASS01-02 (10.103.AA) - CRANKSHAFT (10) - ENGINE

1

87379564

CRANKSHAFT

ASSY, Crankshaft, Incl 2 - 4

1шт.

2

289770A1

PIN

2шт.

3

419830A1

SMALL PIN

1шт.

4

NSS

NOT SOLD SEPARAT

Crankshaft, Incl in 1

1шт.

5

87597950

BOLT

6шт.

6

47678195

DAMPER

1шт.

7

437905A1

PULLEY

ASSY, Crankshaft Pulley, Incl 8

1шт.

8

438051A1

PIN

1шт.

9

438188A1

PLATE

4шт.

10

84387650

BOLT

4шт.

11

87484075

BEARING LINER

6шт.

11

87484055

BEARING LINER

6шт.

12

84388016

THRUST WASHER

2шт.

13

84388014

THRUST WASHER

1шт.

14

87379566

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.522-2.526mm Thk

7шт.

14

87379569

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.518-2.522mm Thk

7шт.

14

87379572

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.514-2.518mm Thk

7шт.

15

87378184

IDLER GEAR

1шт.
