Запчасти Case AQ-6HK1XASS01-02 (10.001.AD[02]) - ENGINE, GASKET, SET (10) - ENGINE

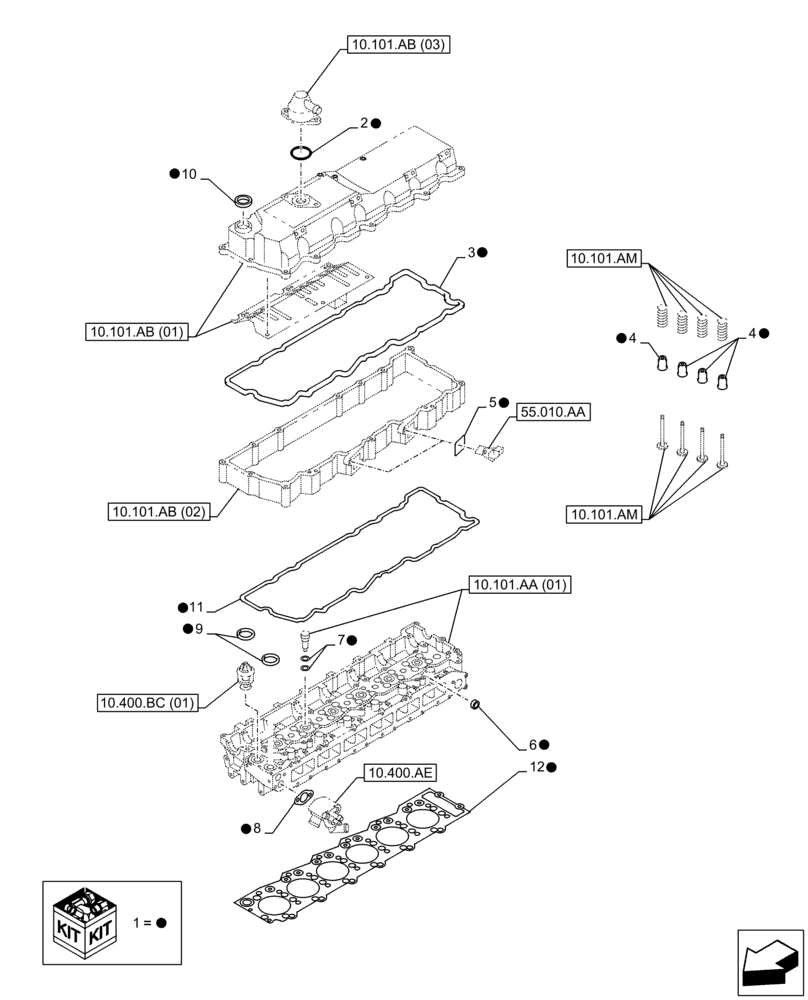

![Схема запчастей Case AQ-6HK1XASS01-02 - (10.001.AD[02]) - ENGINE, GASKET, SET (10) - ENGINE](https://partsell.ru/storage/images/casece/5307418.png)
3
1
4
10
1
1
6
7
10.101.aa (01)
1
10.101.ab (02)
1
1
1
10.400.bc (01)
1
10.101.am
5
11
1
10.400.ae
9
10.101.am
10.101.ab (03)
4
55.010.aa
12
1
10.101.ab (01)
1
8
2
1
1
1
№
Артикул
Название
Примечание
Количество
1
48004898
ENGINE OVERHAUL KIT
ASSY, Gasket Set, Incl 2 - 12
1шт.
2
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
4
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
5
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
6
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
7
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
8
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
9
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
10
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
11
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
12
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
Выбрано товаров: 12
