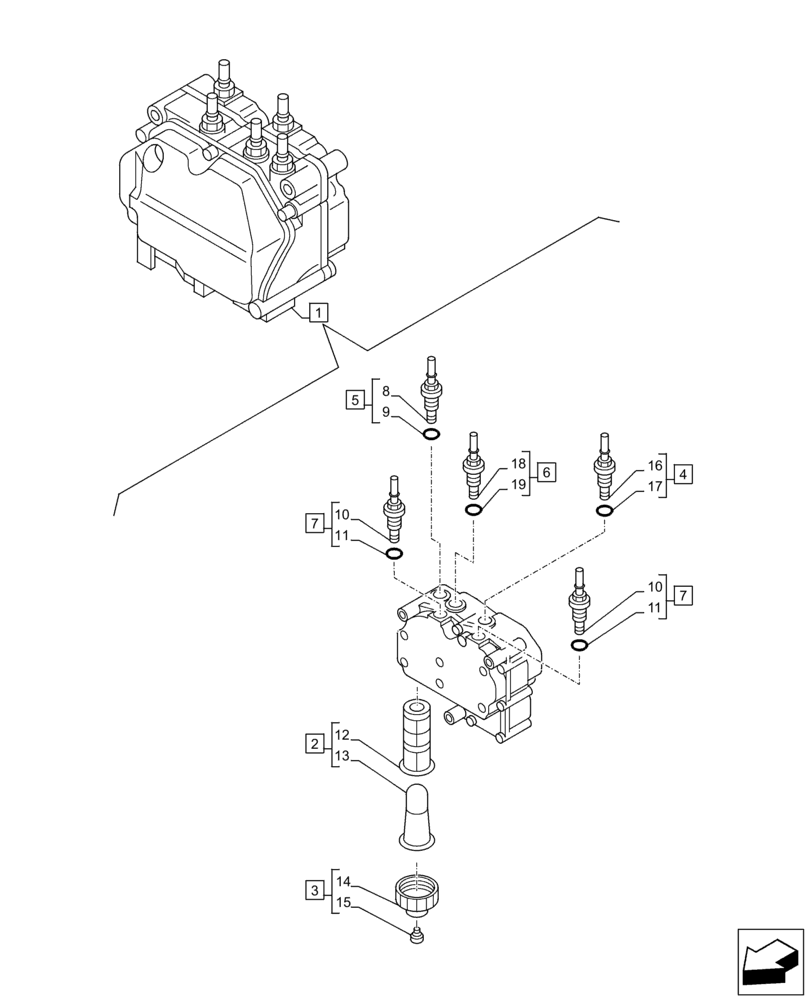

Запчасти Case AQ-4HK1XASS01 (55.988.AF) - DEF/ADBLUE™, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

47703176

PUMP

ASSY, Def Dcm Sply Pump, Incl 2 - 17

1шт.

2

47703146

FILTER

ASSY, Supply Module, Incl 12, 13

1шт.

3

47703147

COVER

ASSY, Cover, Incl 14, 15

1шт.

4

47703148

FITTING

ASSY, Inlet Pump Connector, Incl 16, 17

1шт.

5

47703151

FITTING

ASSY, Outlet Pump Connector, Incl 8, 9

1шт.

6

47703157

FITTING

ASSY, Return Pump Connector, Incl 17, 19

1шт.

7

47703160

FITTING

ASSY, Coolant Pump Connector, Incl 10, 11

2шт.

8

NSS

NOT SOLD SEPARAT

Outlet Pump Def Connector, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Outlet Pump Def Connector, Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

Coolant Pump Connector, Incl in 7

2шт.

11

NSS

NOT SOLD SEPARAT

Coolant Pump Connector, Incl in 7

2шт.

12

NSS

NOT SOLD SEPARAT

Pump Def Dcm Sply Filter, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Pump Def Dcm Sply Filter, Incl in 2

1шт.

14

NSS

NOT SOLD SEPARAT

Pump Def Dcm Sply Cover, Incl in 3

1шт.

15

NSS

NOT SOLD SEPARAT

Pump Def Dcm Sply Cover, Incl in 3

1шт.

16

NSS

NOT SOLD SEPARAT

Inlet Pump Def Connector, Incl in 4

1шт.

17

NSS

NOT SOLD SEPARAT

Inlet Pump Def Connector, Incl in 4

1шт.

18

NSS

NOT SOLD SEPARAT

Return Pump Connector, Incl in 6

1шт.

19

NSS

NOT SOLD SEPARAT

Return Pump Connector, Incl in 6

1шт.
