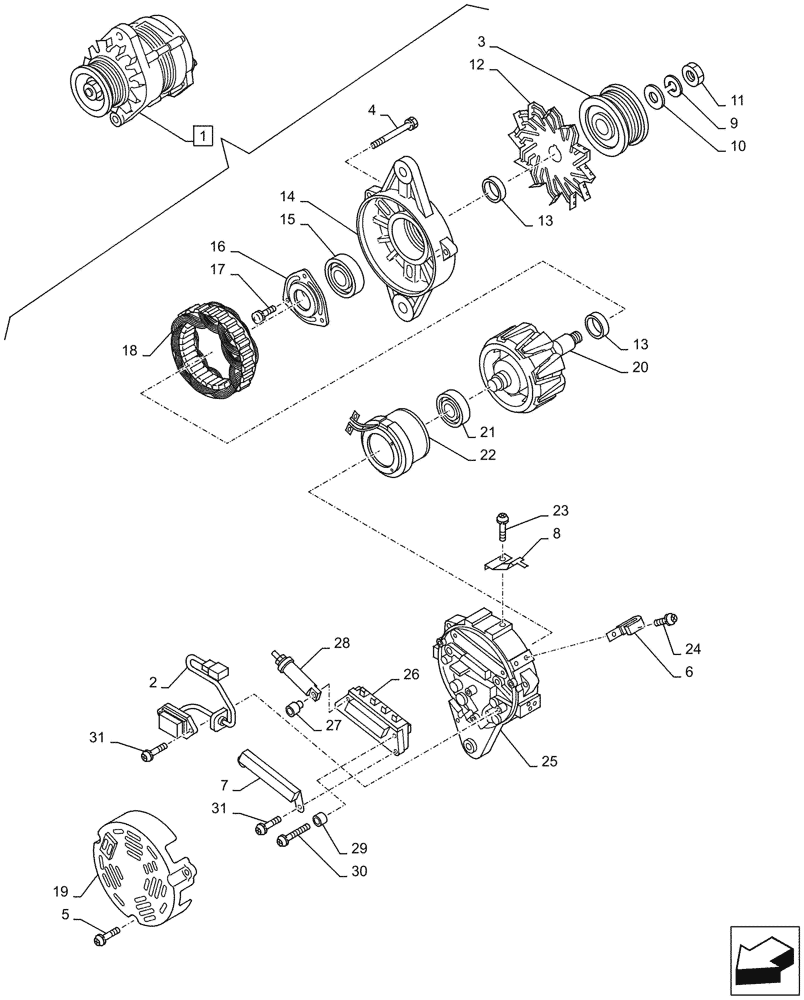

Запчасти Case AQ-4HK1XASS01 (55.301.AA[01]) - ALTERNATOR (25V/50A) (55) - ELECTRICAL SYSTEMS

1

87709230

ALTERNATOR

ASSY, Alternator, Incl 2 - 31

1шт.

Generator 24V-50A

1шт.

2

84123482

REGULATOR

1шт.

3

47382154

PULLEY

1шт.

4

289377A1

BOLT

3шт.

5

426224A1

SCREW

3шт.

6

NSS

NOT SOLD SEPARAT

Clip, Incl in 1

1шт.

7

426228A1

CAPACITOR

1шт.

8

426229A1

COMMUTATOR BRUSH

1шт.

9

426231A1

WASHER

1шт.

10

426232A1

WASHER

1шт.

11

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Fan, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Steel Collar, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Stator, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Rotor, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Coil, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

26

84123483

COVER

1шт.

27

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Rectifier Bolt, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

3шт.
