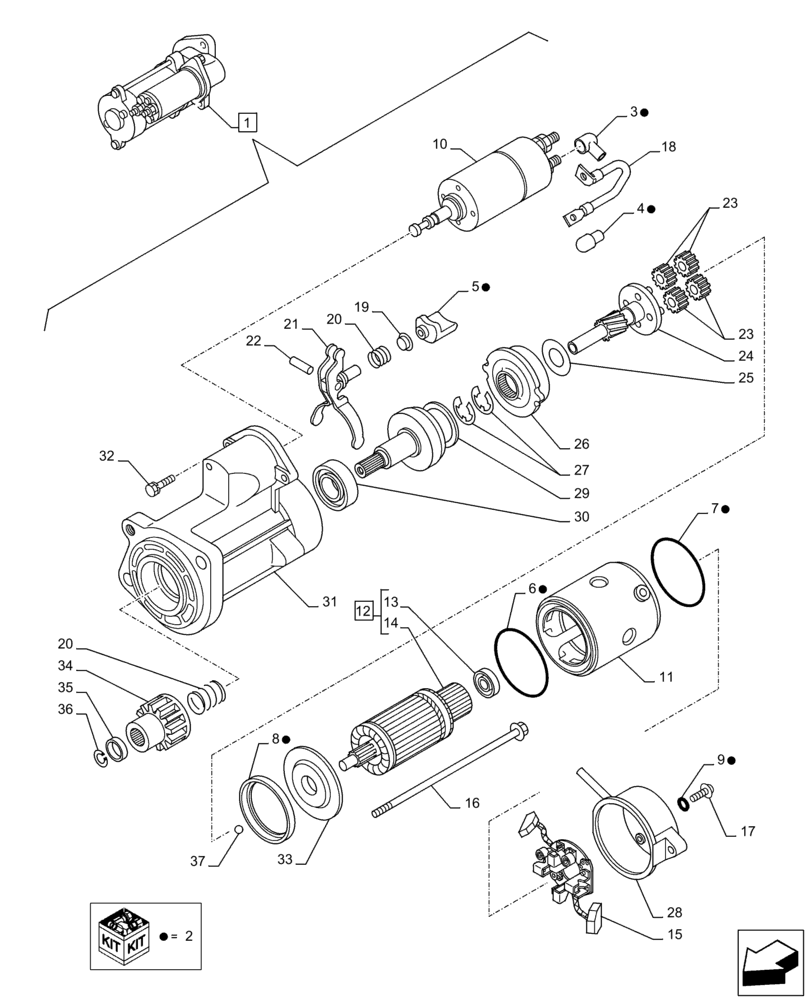

Запчасти Case AQ-4HK1XASS01 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87711539

STARTER MOTOR

ASSY, Starter Motor, Incl 2 - 37

1шт.

2

47382129

SEAL KIT

Starter Seal Kit

1шт.

3

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Seal Kit, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

10

47382150

SOLENOID SWITCH

1шт.

11

47382132

LEVER

1шт.

12

47382140

ARMATURE

ASSY, Starter Armature, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Bearing, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Starter Armature, Incl in 12

1шт.

15

47382143

BRUSH HOLDER

1шт.

16

47382149

BOLT

2шт.

17

71457269

SCREW

2шт.

18

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

21

NSS

NOT SOLD SEPARAT

Starter Lever, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Center Starter Bracket, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

2шт.

28

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Clutch, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Pinion Starter Case, Incl in 1

1шт.

32

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

33

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

34

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

1шт.

35

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

36

NSS

NOT SOLD SEPARAT

Clip, Incl in 1

1шт.

37

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.
