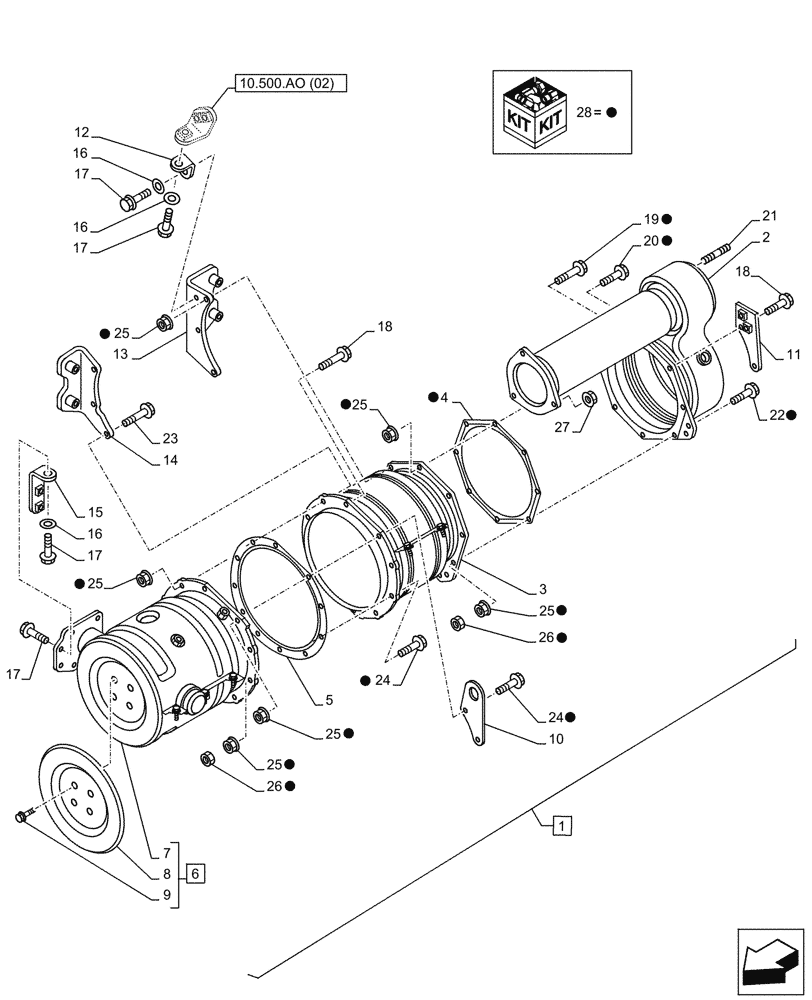

Запчасти Case AQ-4HK1XASS01 (10.500.AO[01]) - SELECTIVE CATALYTIC, REDUCTION, MUFFLER (10) - ENGINE

1

47715464

MUFFLER

ASSY, Incl 2 - 28, Serial Range: -NGS7H1297

1шт.

CX210D LC, LR (NA) Models Only

1шт.

See Also Figure 10.500.AO(02)

1шт.

1

47715464

MUFFLER

ASSY, Incl 2 - 28, Serial Range: -NGS7M1169

1шт.

CX250D LC, LR (NA) Models Only

1шт.

See Also Figure 10.500.AO(02)

1шт.

1

48003497

MUFFLER

ASSY, Incl 2 - 28, Start Serial: NGS7H1298

1шт.

CX210D LC, LR (NA) Models Only

1шт.

See Also Figure 10.500.AO(02)

1шт.

1

48003497

MUFFLER

ASSY, Incl 2 - 28, Start Serial: NGS7M1170

1шт.

CX250D LC, LR (NA) Models Only

1шт.

See Also Figure 10.500.AO(02)

1шт.

1

48003497

MUFFLER

ASSY, Incl 2 - 28

1шт.

CX210D NLC (NA) Model Only

1шт.

See Also Figure 10.500.AO(02)

1шт.

2

47703391

PIPE

1шт.

3

47703439

FILTER PARTICULATE

1шт.

4

47703092

GASKET

1шт.

5

84388048

GASKET

1шт.

6

47703435

CATALYST

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Catalyst, Incl in 6

1шт.

8

84389513

HEAT SHIELD

2шт.

9

87595952

BOLT

8шт.

10

47703413

BRACKET

1шт.

11

47703379

BRACKET

1шт.

12

47703396

BRACKET

1шт.

13

47703367

BRACKET

1шт.

14

47703363

BRACKET

1шт.

15

47703401

BRACKET

1шт.

16

84387713

WASHER

3шт.

17

47703043

BOLT

4шт.

18

84387666

BOLT

1шт.

19

87596450

BOLT

3шт.

20

87597123

BOLT

1шт.

21

47703134

STUD

3шт.

22

47703033

BOLT

1шт.

23

87596450

BOLT

3шт.

24

84387666

BOLT

7шт.

25

288804A1

NUT

1шт.

26

289777A1

NUT

, Serial Range: -NGS7H1297

1шт.

CX210D LC, LR (NA) Models Only

1шт.

26

289777A1

NUT

, Serial Range: -NGS7M1169

1шт.

CX250D LC, LR (NA) Models Only

1шт.

27

87384773

NUT

3шт.

28

48003587

GASKET KIT

1шт.
