Запчасти Case ISM N844 (10.102.01) - OIL PAN & GAUGE (10) - ENGINE

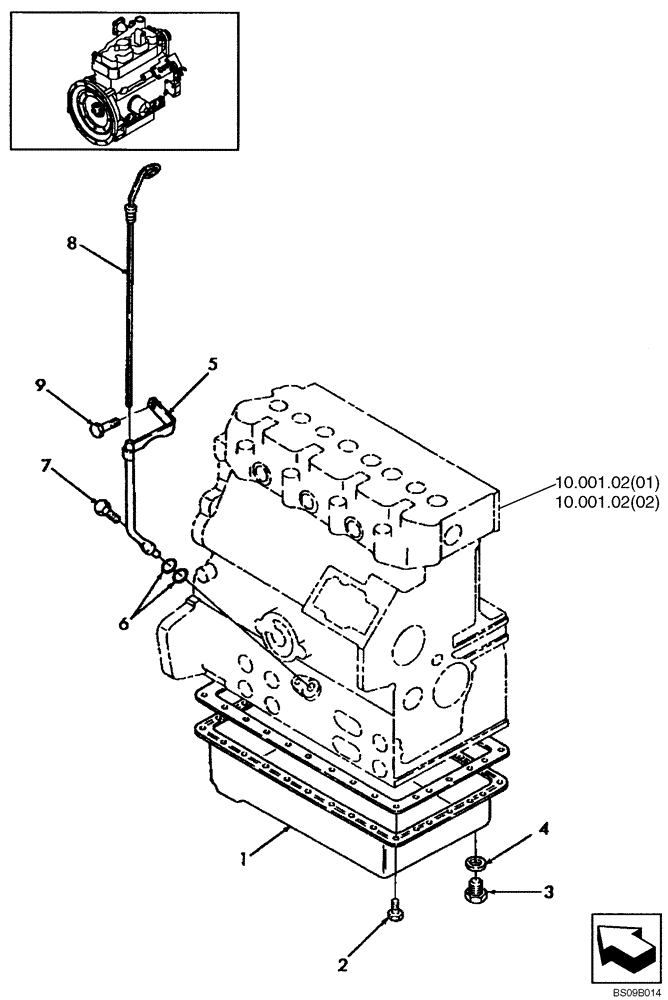

Схема запчастей Case ISM N844 - (10.102.01) - OIL PAN & GAUGE (10) - ENGINE
4
5
1
10.001.02(01)
10.001.02(02)
2
7
8
6
9
3

Артикул

Название

Примечание

Количество

1

SBA110708030

ENGINE OIL PAN

1шт.

2

SBA010109235

BOLT

30шт.

3

SBA010411212

DRAIN PLUG,M12 x 1.25

2шт.

4

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

2шт.

5

SBA110756371

TUBE

Gauge, Complete

1шт.

6

SBA052100100

O-RING

2шт.

7

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

1шт.

8

SBA198416570

DIPSTICK

Complete

1шт.

9

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

Выбрано товаров: 9
