(10.304.AM) - ENGINE OIL, PRESSURE CONTROL VALVE

Запчасти Case F5HFL413J A002 (10.304.AM) - ENGINE OIL, PRESSURE CONTROL VALVE (10) - ENGINE

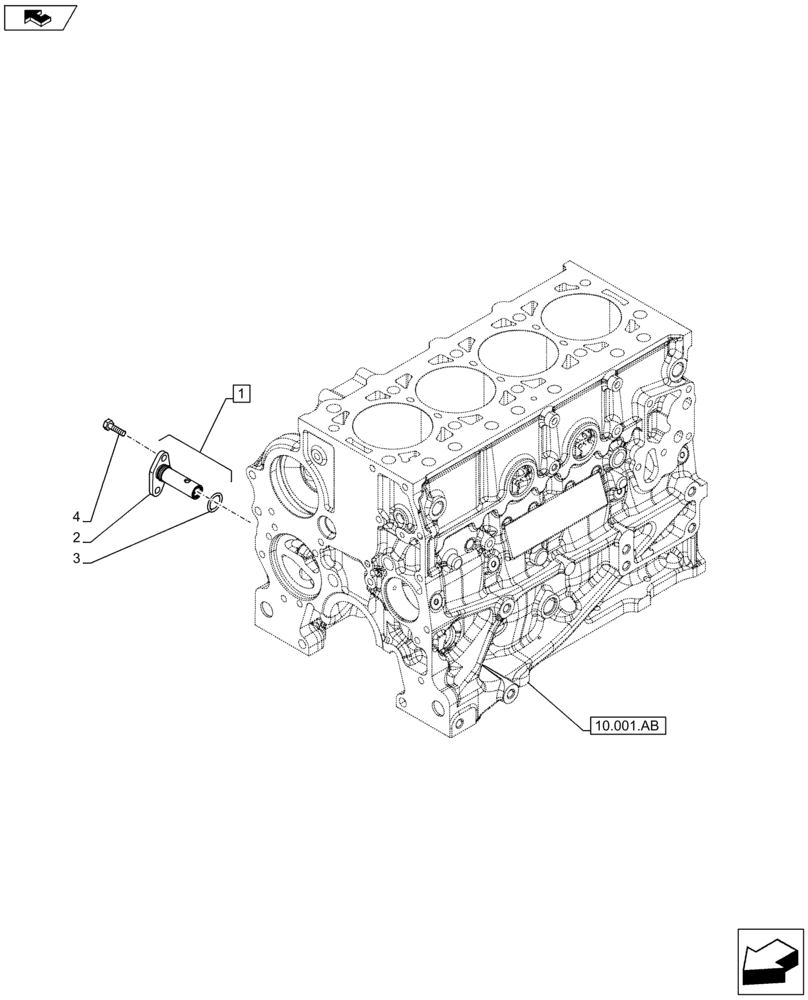

Схема запчастей Case F5HFL413J A002 - (10.304.AM) - ENGINE OIL, PRESSURE CONTROL VALVE (10) - ENGINE
1
2
3
4
10.001.ab
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5801491272

VALVE

ASSY, Incl 2, 3

1шт.

From engine 91152

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

0.674 x 0.88 x 0.103

1шт.

4

16978124

BOLT,Hex, M6 x 14mm

M6 x 14

2шт.

From engine 91152

1шт.

Выбрано товаров: 0
