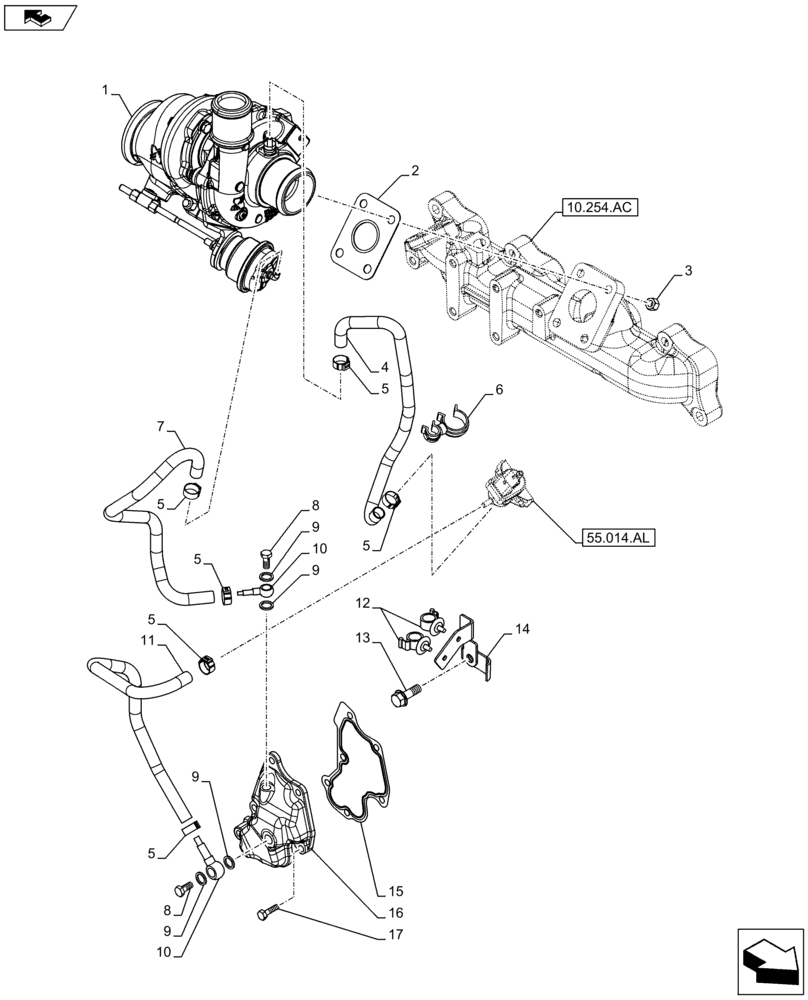

Запчасти Case F5HFL413J A002 (10.250.AC) - TURBOCHARGER (10) - ENGINE

1

5801520045

TURBOCHARGER

1шт.

1

5801520045R

REMAN-TURBOCHARGER

1шт.

1

5801520045C

CORE-TURBOCHARGER

Return Number

1шт.

2

4899343

GASKET,0.45mm Thk

1шт.

3

500322677

NUT,M8

M8

2шт.

4

5801404365

TUBE

1шт.

5

18199070

MOUNTING CLIP

6шт.

6

5801425138

CLAMP

1шт.

7

5801509001

TUBE

1шт.

8

4864078

BANJO BOLT,M8 x 1.25

2шт.

9

98474303

WASHER,8mm ID x 14mm OD x 2.3mm Thk

4шт.

10

5801509102

FITTING

2шт.

11

5801509002

TUBE

1шт.

12

504000060

COLLAR

2шт.

13

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

1шт.

14

5801509009

BRACKET, SUPPORTING

1шт.

15

5801509267

GASKET

1шт.

16

5801509006

COVER

ASSY, Incl 18 - 20

1шт.

17

2854083

BOLT,Flng, M6 x 1 x 30mm

2шт.

17

16978124

BOLT,Hex, M6 x 14mm

2шт.
