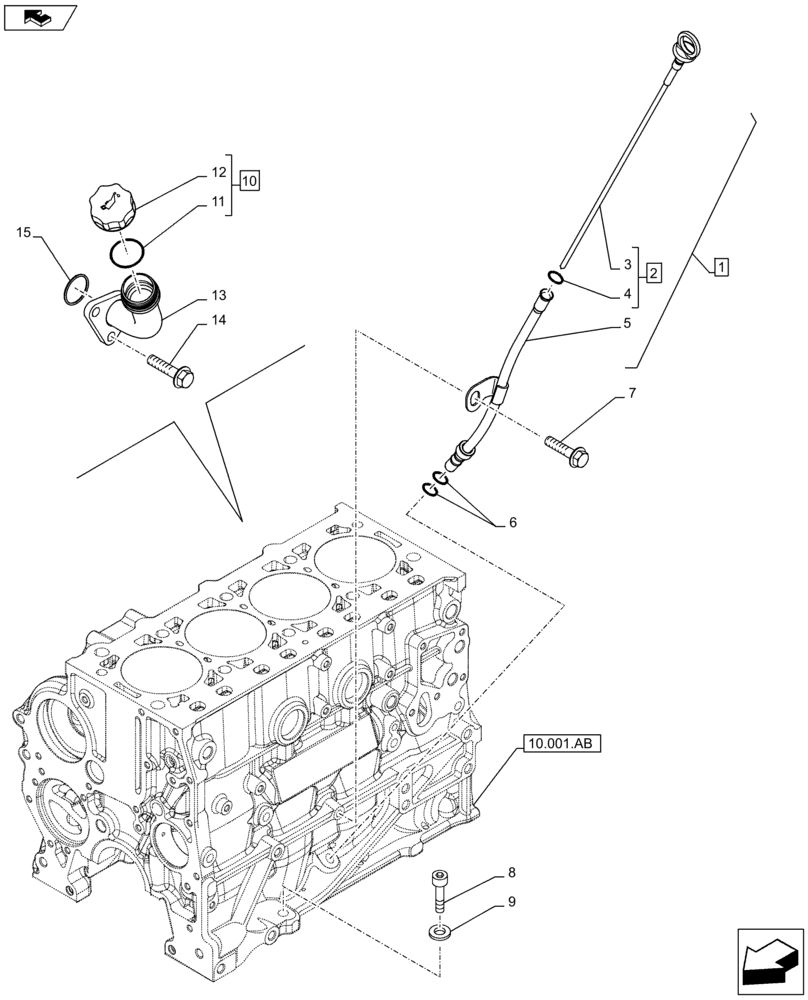

Запчасти Case F5HFL413G A001 (10.304.AJ) - ENGINE OIL, FILLER (10) - ENGINE

1

5801560864

Incl 2 - 5

1шт.

2

580156881

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Pipstick, Incl in 2

1шт.

4

504027969

SEALING RING

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

2шт.

7

16588225

BOLT,Hex, M12 x 1.75 x 40mm

Incl 11, 12

1шт.

8

5801502710

SCREW

1шт.

9

17095814

WASHER

1шт.

10

2853410

FILLER CAP,Female

Incl 11, 12

1шт.

11

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.

12

NSS

NOT SOLD SEPARAT

Cap, Incl in 10

1шт.

13

504087621

NECK FILLER

1шт.

14

16677735

SCREW,M12 x 25mm

2шт.

15

14458681

O-RING,1.487" ID x 0.103" Width

1шт.
