Запчасти Case F5HFL413B A002 (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (5801406438) (10) - ENGINE

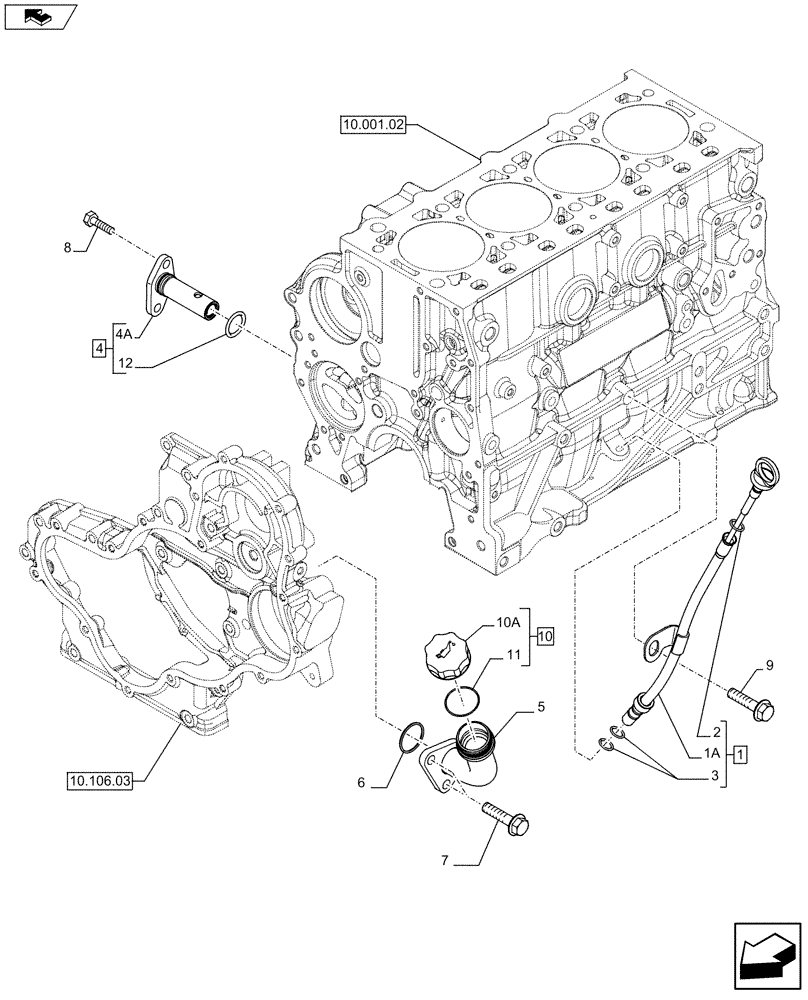

Схема запчастей Case F5HFL413B A002 - (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (5801406438) (10) - ENGINE
3
1
5
4a
10a
12
6
home
4
7
11
1a
9
10.106.03
10.001.02
2
10
8

Артикул

Название

Примечание

Количество

1

504226579

DIPSTICK

ASSY Contains Ref.1A, 2, 3.

1шт.

2

504027969

SEALING RING

SEALRING

1шт.

3

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

2шт.

4

504382195

VALVE PRESSURE RELIE

ASSY Contains Ref.4A, 12.

1шт.

4a

NSS

NOT SOLD SEPARAT

1шт.

5

504087621

NECK FILLER

1шт.

6

14458681

O-RING,1.487" ID x 0.103" Width

1шт.

7

16677735

SCREW,M12 x 25mm

2шт.

8

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

9

16588225

BOLT,Hex, M12 x 1.75 x 40mm

1шт.

10

2853410

FILLER CAP,Female

ASSY Contains Ref.10A, 11.

1шт.

10a

NSS

NOT SOLD SEPARAT

1шт.

11

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.

12

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

Выбрано товаров: 14
