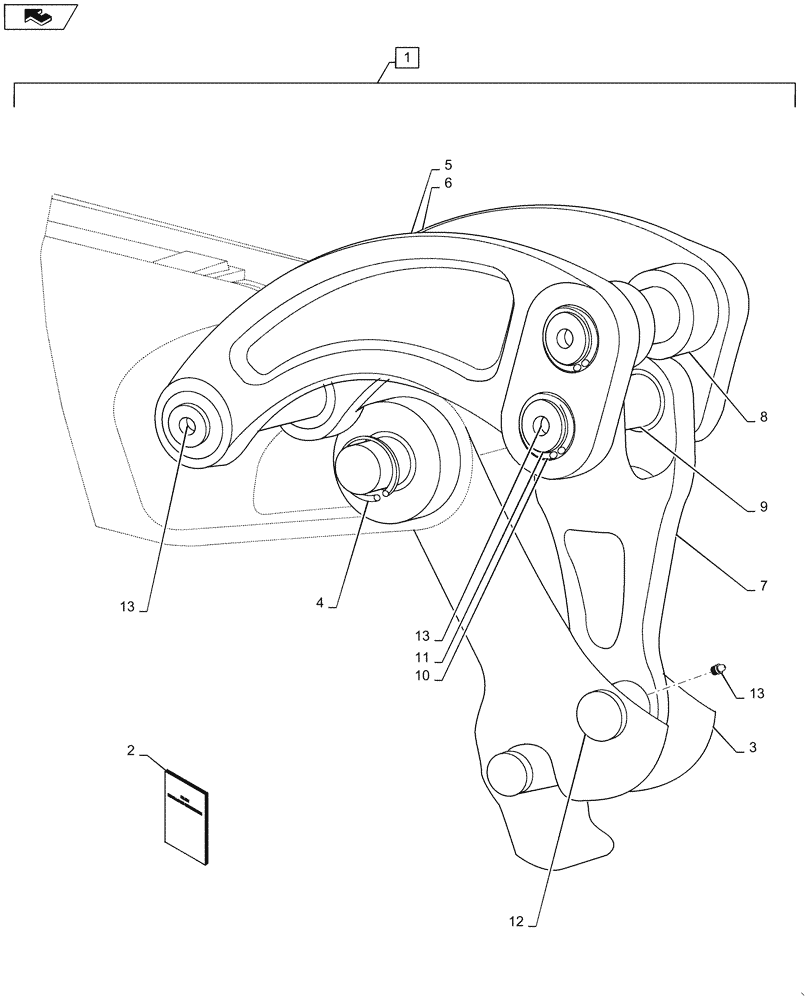

Запчасти Case F5HFL413B A001 (88.088.01) - DIA KIT, CONVERSION FROM STD (88) - ACCESSORIES

1

84276528

KIT

Conversion From Standard Links To Quick, Incl 2 - 13

1шт.

2

84276530

INSTRUCTION

Sheet, Conversion From Standard Lin

1шт.

3

84229979

LINK ASSY.

Lift, Mechanic Backhoe Coupler

1шт.

4

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

Dipper, Coupler

2шт.

5

84229982

LINK ASSY.

Backhoe Bucket Guide

1шт.

6

84229983

LINK ASSY.

Backhoe Bucket Guide

1шт.

7

84303417

LINK ASSY.

Backhoe Bucket Dump

1шт.

8

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

Bucket Cylinder To Guide Links

2шт.

9

84231908

PIN,55mm OD x 291.76mm L

Backhoe Link

1шт.

10

84233536

RING,55mm ID, Ext

Retaining External Heavy 55mm, ZNM

2шт.

11

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

12

84223652

PIN,50mm OD x 151mm L

Dump Link To Coupler

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting

7шт.
