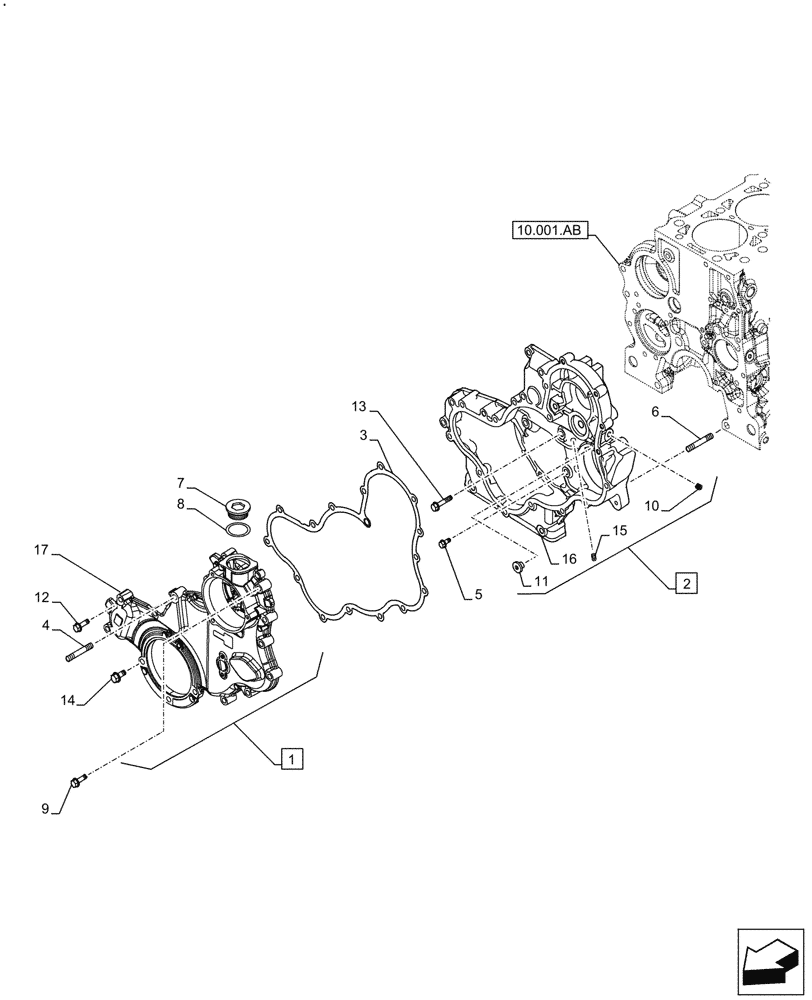

Запчасти Case F5HFL463D F005 (10.102.AK) - CRANKCASE, CRANKCASE (10) - ENGINE

1

5801706000

COVER

ASSY, Front, Incl 4, 7, 8, 12, 14, 17

1шт.

2

5801598442

COVER

ASSY, Rear, Incl 10, 11, 15, 16

1шт.

3

504379050

GASKET

1шт.

4

16727724

M6 x 1

STUD

3шт.

5

4798844

SCREW

3шт.

6

16730924

STUD

3шт.

7

16993811

PLUG

1шт.

8

99469381

GASKET

1шт.

9

16586624

SCREW,M8 x 35mm

15шт.

10

504051236

PLUG,Threaded, 1/8"

1шт.

11

16882515

PLUG

1шт.

12

16586925

BOLT,M8 x 50mm

M8 x 1,25 x 45mm

7шт.

13

16586725

BOLT,Hex, M8 x 1.25 x 40mm

1шт.

14

16673735

BOLT,Hex, M8 x 1.25 x 25mm

4шт.

15

99435557

DOWEL,8.50mm Dia

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Rear, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Cover, Front, Incl in 1

1шт.
