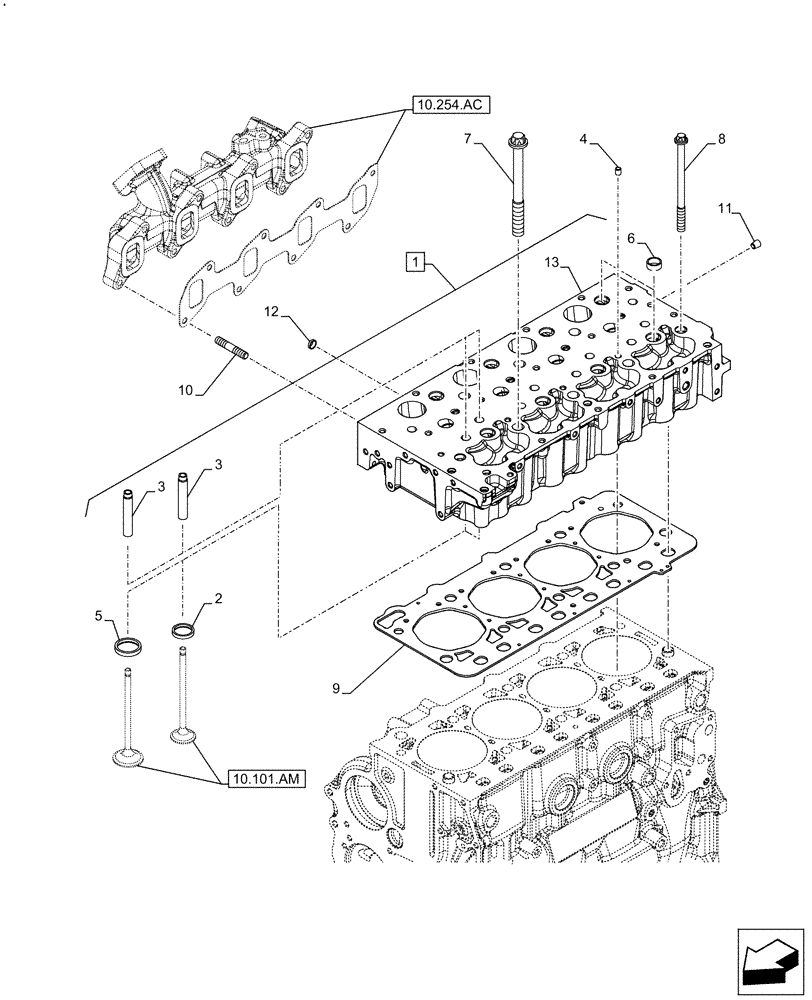

Запчасти Case F5HFL463C F002 (10.101.AA) - CYLINDER HEAD (10) - ENGINE

1

504389002

CYLINDER HEAD

ASSY; Incl 1 - 3; 5; 6; 13

1шт.

1

47508144R

REMAN-CYLINDER HEAD

1шт.

1

47508144C

CORE-CYLINDER HEAD

Return Number

1шт.

2

504162949

VALVE SEAT

4шт.

3

4749397

VALVE GUIDE,Std

8шт.

3

4749398

VALVE GUIDE,+0.10

8шт.

3

4749399

VALVE GUIDE,+0.2

8шт.

4

99435557

DOWEL,8.50mm Dia

D=8,5 mm

1шт.

5

504254094

VALVE SEAT

4шт.

6

16988301

PLUG,Lock, 20mm Dia

D=20 mm

8шт.

7

504081521

BOLT,M15 x 1.5 x 193mm

M15 x 1,5 x 193 mm

6шт.

8

504081533

BOLT,M12 x 1.5 x 165mm

M12 x 1,5 x 165 mm

4шт.

9

5801450757

CYLINDER HEAD GASKET,0.80mm Thk

Sp=0,8 mm

1шт.

10

5801475385

STUD,M8 x 1.25

M8 x 1,25

8шт.

11

16990970

PLUG,Lock, 30mm Dia

D=30 mm

1шт.

12

16990670

PLUG,Lock, 22mm Dia

D=22 mm

4шт.

13

NSS

NOT SOLD SEPARAT

Cylinder head; Incl in 1

1шт.
