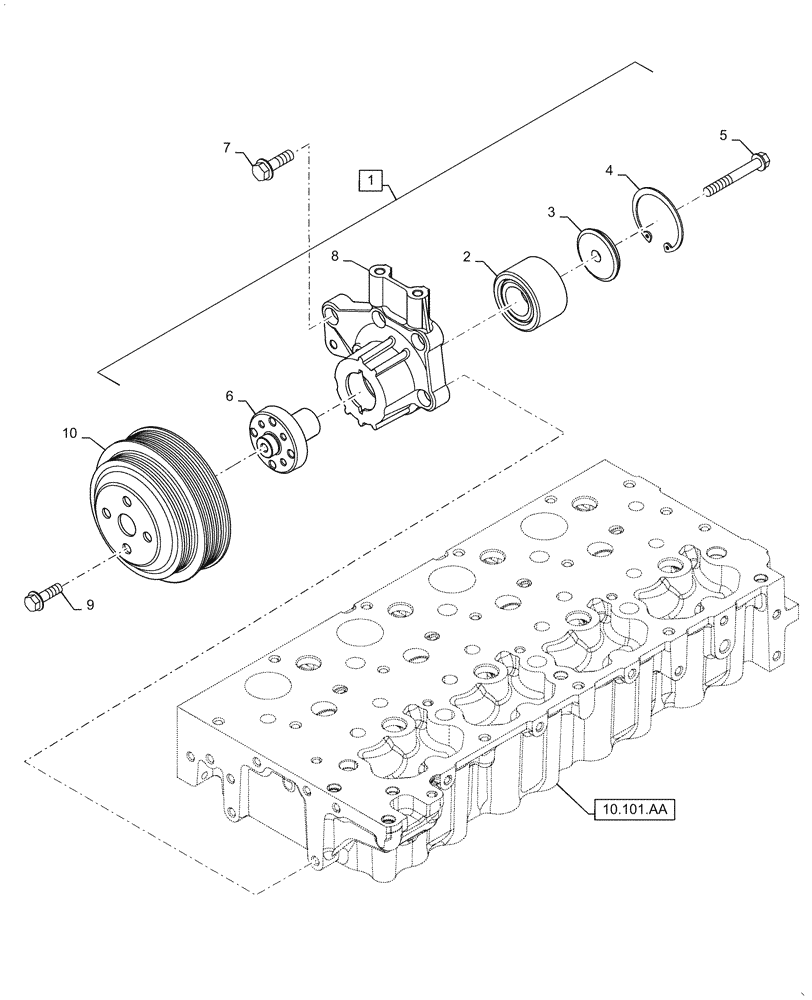

Запчасти Case F5HFL463A F001 (10.414.AD) - FAN BELT DRIVE PULLEY (10) - ENGINE

1

504255374

FAN HOUSING

Incl 2 - 6, 8

1шт.

2

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

3

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

Fan Hub

1шт.

4

500395697

SNAP RING,M68.2, Int

1шт.

5

16676834

FLANGE BOLT,Hex, M10 x 70mm

1шт.

6

504255371

HUB

1шт.

7

16673735

BOLT,Hex, M8 x 1.25 x 25mm

5шт.

8

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

9

18139424

SCREW,Hex, M10 x 20mm

4шт.

10

504388091

PULLEY,180mm OD x 64mm W

1шт.
