Запчасти Case F5CE9454G A001 (0401.032) - CRANKCASE (10) - ENGINE

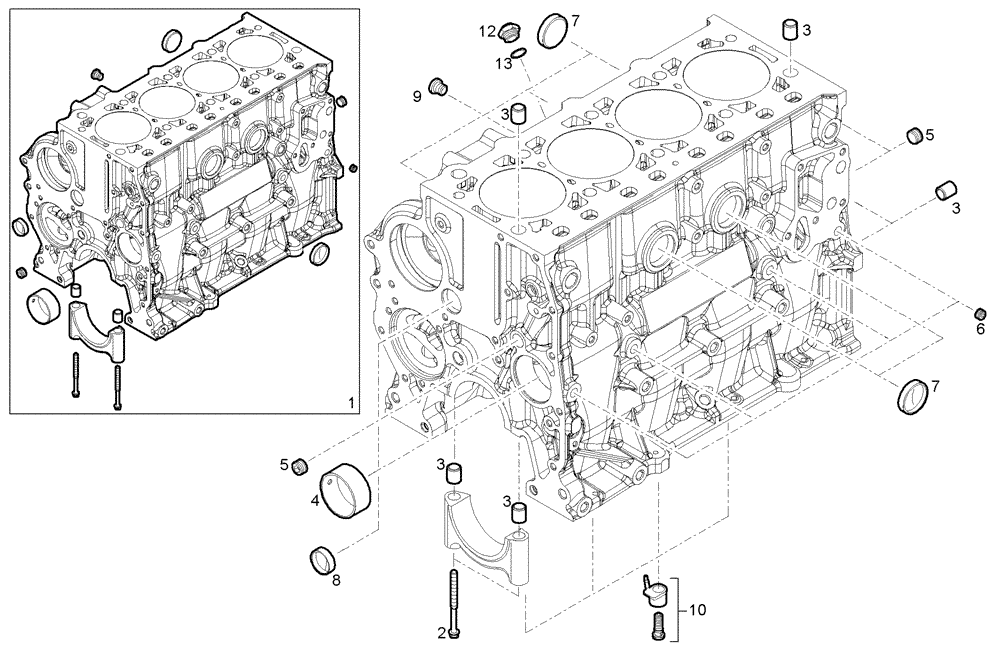

Схема запчастей Case F5CE9454G A001 - (0401.032) - CRANKCASE (10) - ENGINE

Артикул

Название

Примечание

Количество

1

504189766

CYLINDER BLOCK,4 Cylinders

CRANKCASE

1шт.

2

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

HEXAGON BOLT, M12X120 MM

10шт.

3

7300019

DOWEL,0.75mm Thk

DOWEL PIN

14шт.

4

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

CAMSHAFT BEARING

1шт.

5

504051238

PLUG,Threaded, 3/8" Dia

THREADED PLUG, DIAM=3/8"

3шт.

6

504051236

PLUG,Threaded, 1/8"

THREADED PLUG, DIAM=1/8"

4шт.

7

16989101

PLUG,Lock, M40

LOCK PLUG, dia=40 MM

6шт.

8

16988701

PLUG,Lock, M30

LOCK PLUG, dia=30 MM

1шт.

9

504016052

PLUG,M14 x 1.5

LOCK PLUG, M14X1,5

1шт.

10

504156515

LUBE OIL NOZZLE

OIL NOZZLE

1шт.

12

504356829

THREADED UNION, M14X1,5

PIPE FITTING,M14 x 1.5

1шт.

13

504077652

SEALING WASHER,13mm ID x 19mm OD

WASHER

1шт.

Выбрано товаров: 12
