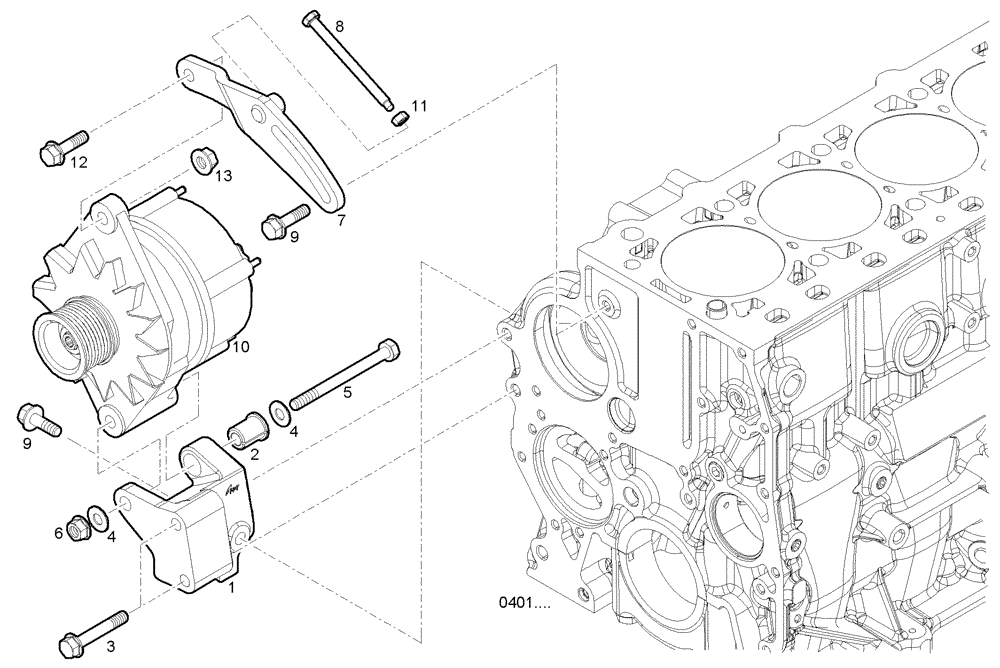

Запчасти Case F5CE9454G A001 (4000.209) - GENERATOR (55) - ELECTRICAL SYSTEMS

1

504276997

BRACKET, SUPPORTING

GENERATOR SUPPORT

1шт.

2

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

SPACING BAR

1шт.

3

16587824

BOLT,Hex, M10 x 1.5 x 60mm

HEXAGON BOLT, M10X1,5X60 MM

2шт.

4

14489004

WASHER

WASHER, 10x21

2шт.

5

15972224

SCREW,Hex, M10 x 1.25 x 120mm

HEXAGON BOLT, M10X1,25X120 MM

1шт.

6

17044825

NUT,Hex, M10 x 1.25

HEXAGON NUT, M10

1шт.

7

504243953

BELT TENSIONER

BELT TENSIONER

1шт.

8

504302206

BOLT

HEXAGON BOLT

1шт.

9

16587325

SCREW,Hex, M10 x 35mm

HEXAGON BOLT, M10X35 MM

2шт.

10

2852185

ALTERNATOR,12V, 95A, W/ Pulley

ALTERNATOR, ASSY, See also 4030.067

1шт.

11

17038021

HEXAGON NUT, M8X1, UP TO # 3066

NUT

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

HEXAGON NUT, M8X1,25, FROM # 3067

1шт.

12

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

1шт.

13

17044735

NUT,Hex, M8

NUT, M8

1шт.
