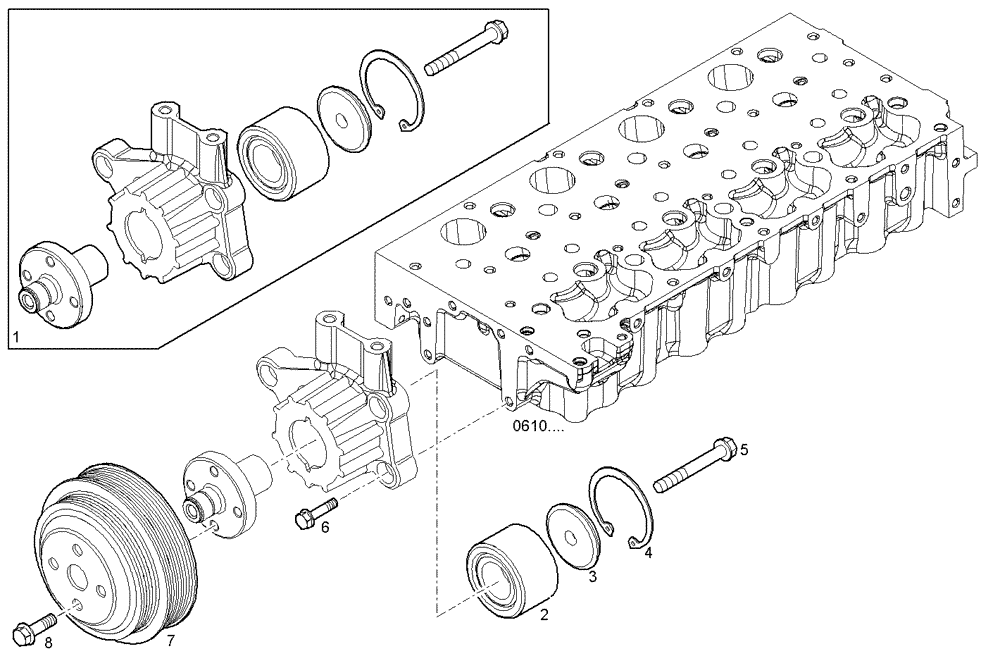

Запчасти Case F5CE9454G A001 (3490.006) - FAN SUPPORT (10) - ENGINE

1

504255373

BRACKET, SUPPORTING

SUPPORT

1шт.

2

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

BALL BEARING

1шт.

3

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

WASHER

1шт.

4

32324

SNAP RING,2.44", Int, #244

SPRING LOCKWASHER

1шт.

5

16592824

BOLT,M10 x 1.5 x 70mm

HEXAGON BOLT, M10X70 MM

1шт.

6

16586524

FLANGE BOLT,Hex Flat Hd, M8 x 1.25 x 30mm, Cl 8.8

HEXAGON BOLT, M8X30 MM

5шт.

7

504255370

PULLEY,157.4mm OD x 65mm W

PULLEY

1шт.

8

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

HEXAGON BOLT, M10X20 MM

4шт.
