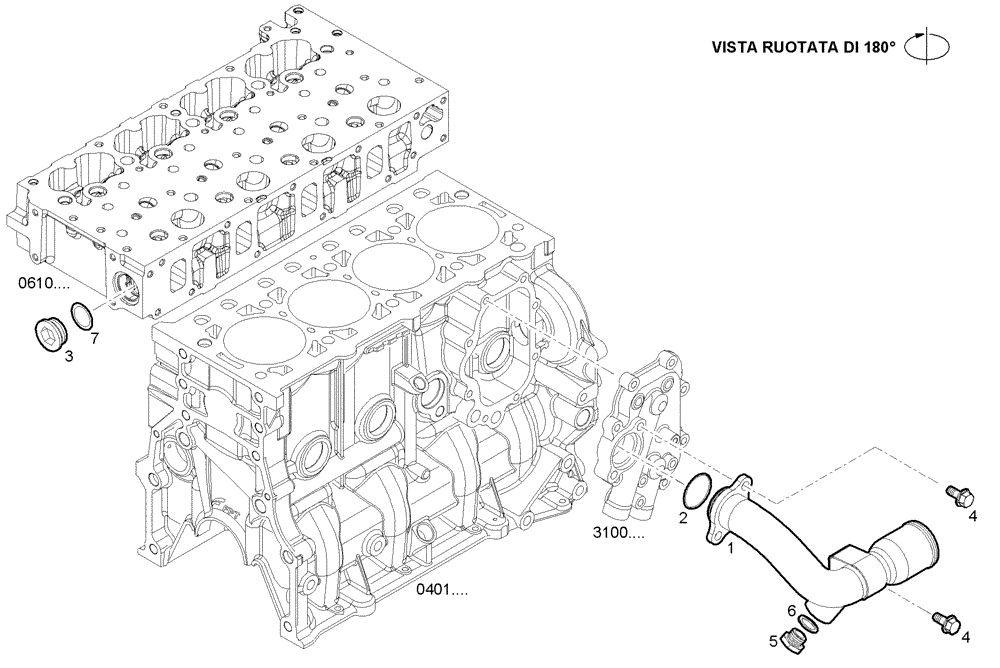

Запчасти Case F5CE9454G A001 (3230.045) - WATER PIPE (10) - ENGINE

1

504182961

PIPE

WATER PIPE

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

O-RING, dia=31,34X3,53 MM

1шт.

3

16993711

PLUG,M35 x 1.5

THREADED PLUG, M35X1,5

1шт.

4

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

HEXAGON BOLT, M8X1,25X18 MM

3шт.

5

16992411

PLUG

THREADED PLUG, M16X1,5

1шт.

6

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=16X22 MM SP=1,5 MM

1шт.

7

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

SEAL GASKET, dia=35,3 MM

1шт.
