Запчасти Case F5CE9454G A001 (3100.163) - OIL - WATER HEAT EXCHANGER (10) - ENGINE

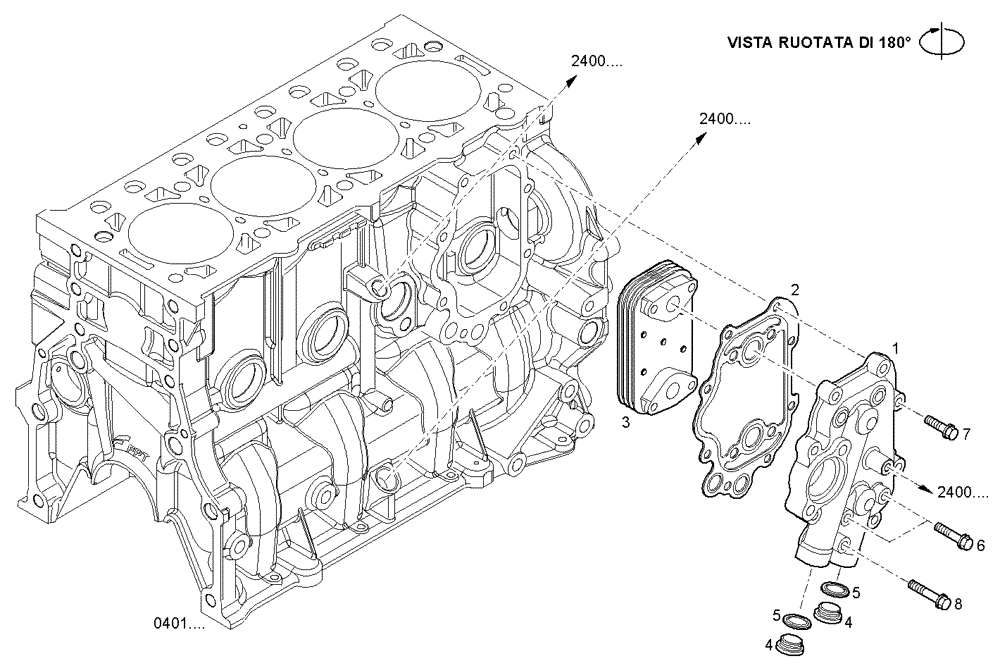

Схема запчастей Case F5CE9454G A001 - (3100.163) - OIL - WATER HEAT EXCHANGER (10) - ENGINE

Артикул

Название

Примечание

Количество

1

504155542

BODY

HEAT EXANGER BODY

1шт.

2

504155544

GASKET

FLAT ENGINE GASKET

1шт.

3

504164307

OIL COOLER

OIL COOLER

1шт.

4

10275011

PLUG,M22 x 1.5 x 13

THREADED PLUG, M22X1,5

2шт.

5

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

SEAL GASKET, dia=22X30 MM SP=1,5 MM

2шт.

6

16586724

SCREW,M8 x 1.25 x 40mm

SCREW, M8X1,25X40 MM

2шт.

7

16586524

FLANGE BOLT,Hex Flat Hd, M8 x 1.25 x 30mm, Cl 8.8

HEXAGON BOLT, M8X30 MM

9шт.

8

16586924

BOLT,Hex, M8 x 50mm

HEXAGON BOLT, M8X50 MM

1шт.

Выбрано товаров: 8
