Запчасти Case F5CE9454G A001 (0627.001) - CYL. HEAD COVERS (10) - ENGINE

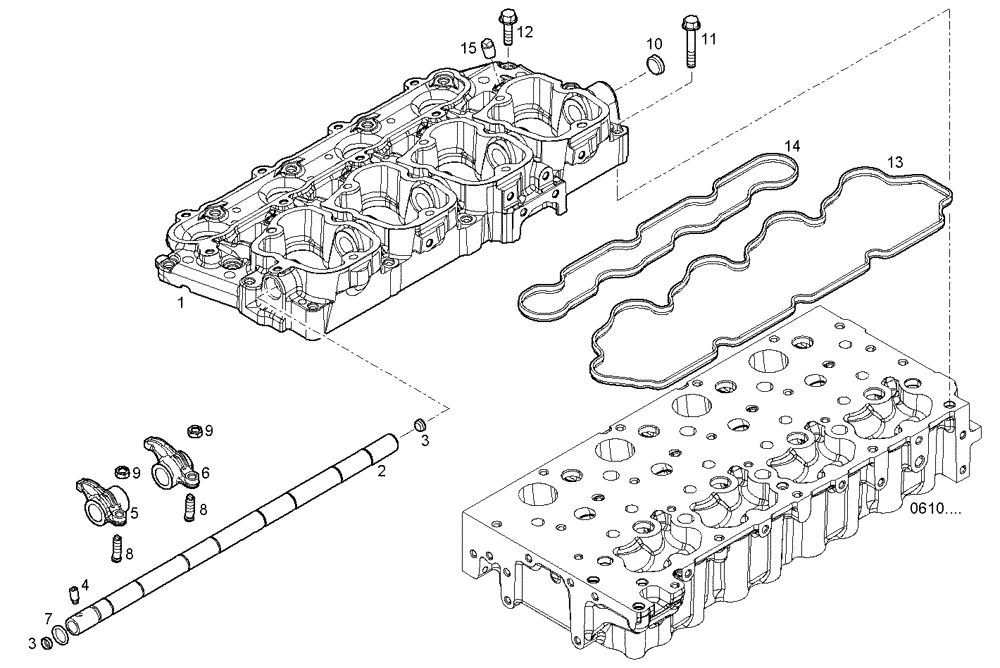

Схема запчастей Case F5CE9454G A001 - (0627.001) - CYL. HEAD COVERS (10) - ENGINE

Артикул

Название

Примечание

Количество

1

504276085

VALVE COVER

SPACING BAR

1шт.

2

504250345

SHAFT

ROCKER SHAFT

1шт.

3

14328301

PLUG,M12, Tapered

LOCK PLUG, dia=12 MM

2шт.

4

99454296

SCREW

CYLIND-HEAD SCREW

1шт.

5

5801572079

SHAFT

ROCKER ARM, INTAKE

4шт.

6

504221914

ROCKER ARM

ROCKER ARM, EXHAUST

4шт.

7

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING, dia=13,9 MM SP=2,6 MM

1шт.

8

4699783

ADJUSTMENT SCREW

ROCKER ARM SCREW

8шт.

9

4338920

NUT

ADJUSTING NUT

8шт.

10

14328801

PLUG,M22, Tapered

LOCK PLUG, dia=22 MM

1шт.

11

16586921

BOLT,Hex, M8 x 50mm

HEXAGON BOLT, M8X50MM

10шт.

12

16586524

FLANGE BOLT,Hex Flat Hd, M8 x 1.25 x 30mm, Cl 8.8

HEXAGON BOLT, M8X30 MM

11шт.

13

504163121

GASKET

FLAT ENGINE GASKET

1шт.

14

504177226

GASKET

FLAT ENGINE GASKET

1шт.

15

504273002

PLUG,M12 x 1.5

THREADED PLUG, M12X1,5 MM

4шт.

Выбрано товаров: 15
