Запчасти Case F5CE9454G A001 (0610.021) - CYLINDER HEAD (10) - ENGINE

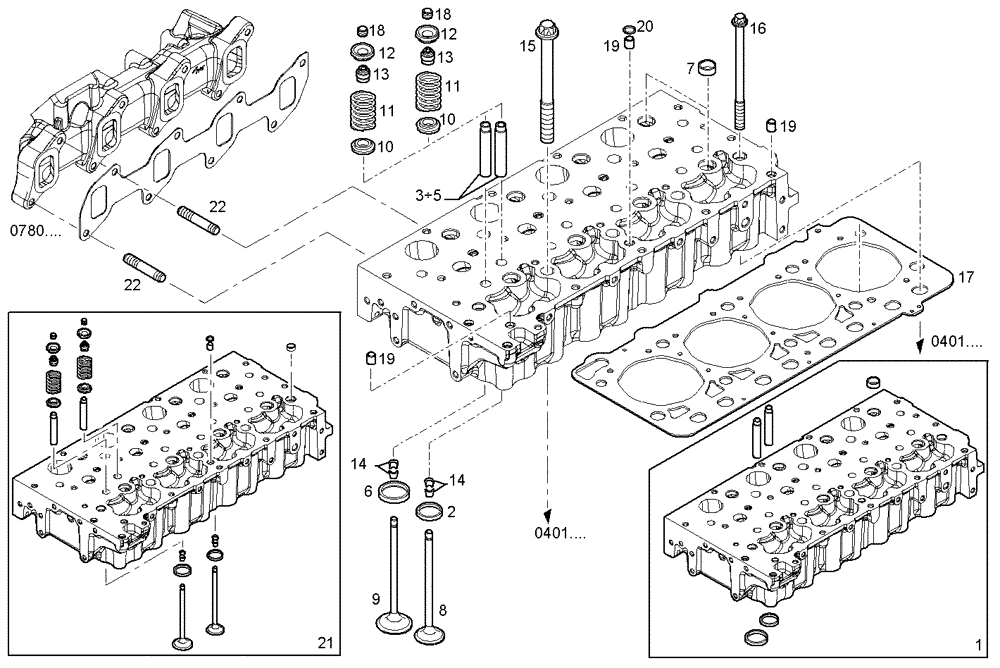

Схема запчастей Case F5CE9454G A001 - (0610.021) - CYLINDER HEAD (10) - ENGINE

Артикул

Название

Примечание

Количество

1

504254092

CYLINDER HEAD

CYLINDER HEAD

1шт.

2

504162949

VALVE SEAT

VALVE SEAT STD.

4шт.

3

4749397

VALVE GUIDE,Std

VALVE GUIDE

8шт.

4

4749398

VALVE GUIDE,+0.10

VALVE GUIDE +0.10

8шт.

5

4749399

VALVE GUIDE,+0.2

VALVE GUIDE +0,2

8шт.

6

504254094

VALVE SEAT

VALVE SEAT STD.

4шт.

7

16988301

PLUG,Lock, 20mm Dia

LOCK PLUG, dia=20 MM

8шт.

8

504162958

STD INLET VALVE

INLET VALVE

4шт.

9

504162959

STD EXHAUST VALVE

EXHAUST VALVE

4шт.

10

504178119

RETAINER CUP

SPRING CAP

8шт.

11

4812347

SPRING

ENGINE VALV.SPRING

8шт.

12

4780558

CUP

SPRING CAP, TOP

8шт.

13

40101574

GASKET

CAP

8шт.

14

14196670

ROCKER ARM COTTER

VALVE CONE, dia=7,85 MM

16шт.

15

504081521

BOLT,M15 x 1.5 x 193mm

HEXAGON BOLT, M15X1,5X193 MM

6шт.

16

504081533

BOLT,M12 x 1.5 x 165mm

HEXAGON BOLT, M12X1,5X165 MM

4шт.

17

504190831

CYLINDER HEAD GASKET

CYL.HEAD GASKET

1шт.

18

4838680

CAP

VALVE CAP

8шт.

19

99435557

DOWEL,8.50mm Dia

DOWEL PIN, dia=8,5 MM

3шт.

20

17281481

O-RING,10.7mm ID x 2.6mm Width

O-RING, dia=10,7 MM SP=2,6 MM

1шт.

21

8099020

CYLINDER HEAD

CYLINDER HEAD, with elements (valves, springs...)

1шт.

22

500380521

STUD,M5 x 12 x 45mm

STUD, M8X12X45, FROM 27-11-07

8шт.

Выбрано товаров: 22
