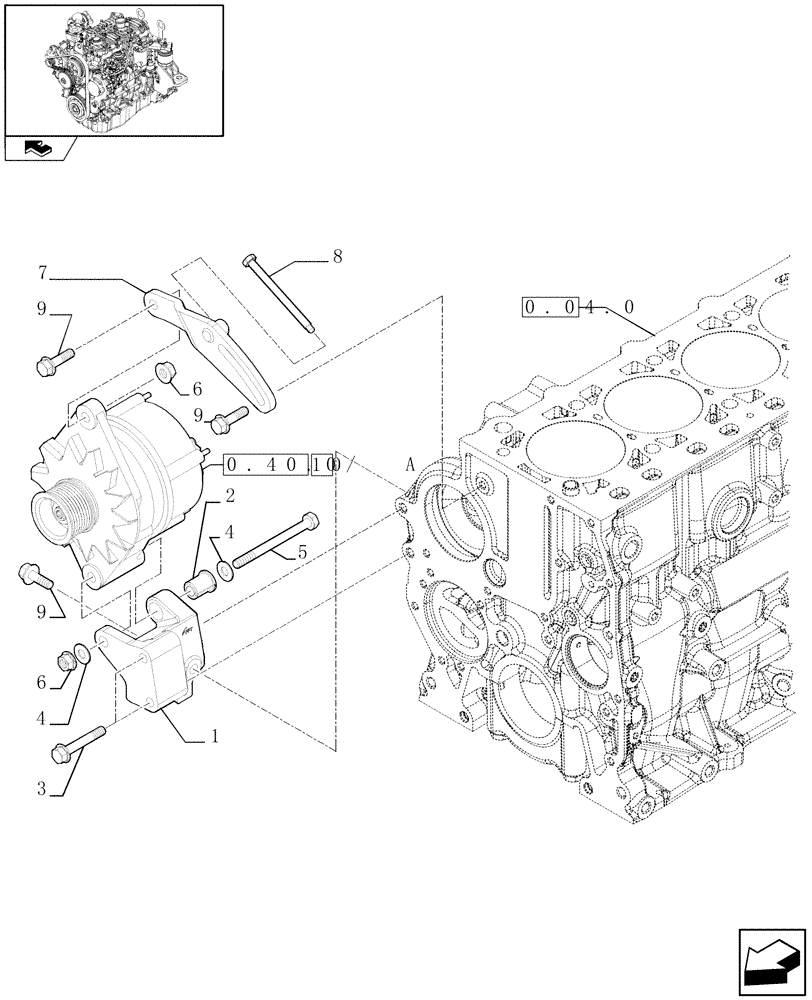

Запчасти Case F5CE9454E A002 (0.40.0) - ENGINE, ALTERNATOR MOUNTING (504186869)

1

504276997

BRACKET, SUPPORTING

1шт.

2

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.

3

16587824

BOLT,Hex, M10 x 1.5 x 60mm

M10 x 1.5 x 60

2шт.

4

14489004

WASHER

D. 10X21X2 mm

2шт.

5

16609024

BOLT

1шт.

6

17044825

NUT,Hex, M10 x 1.25

M10

2шт.

7

504243953

BELT TENSIONER

1шт.

8

504010032

SCREW

1шт.

9

16587325

SCREW,Hex, M10 x 35mm

M10 x 35

3шт.

10

2852185

ALTERNATOR,12V, 95A, W/ Pulley

- ASSY

1шт.

UP TO ENGINE 22777

1шт.
