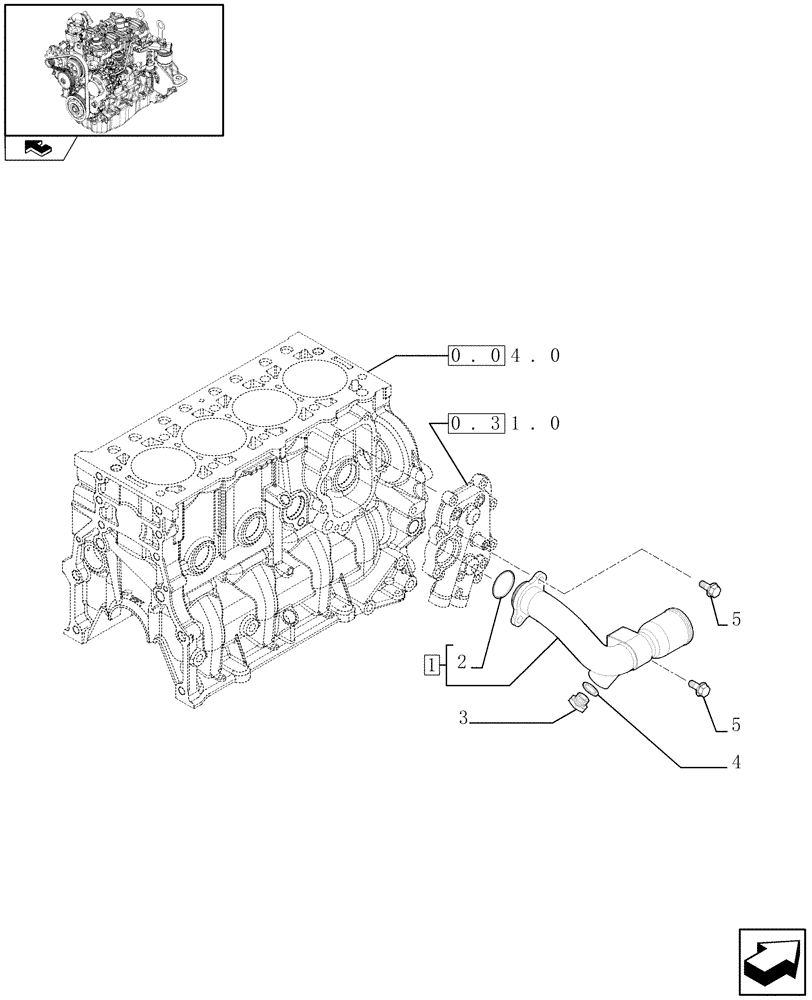

Запчасти Case F5CE9454E A002 (0.32.3) - PIPING - ENGINE COOLING SYSTEM (504246662)

1

504182961

PIPE

- ASSY

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

D. 31,34X3,53 mm

1шт.

3

16995111

PLUG,M35 x 1.5

M35X1,5 mm

1шт.

4

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8X1,25X18 mm

3шт.

5

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

1шт.

6

4858609

WASHER,Brass

1шт.

7

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.
