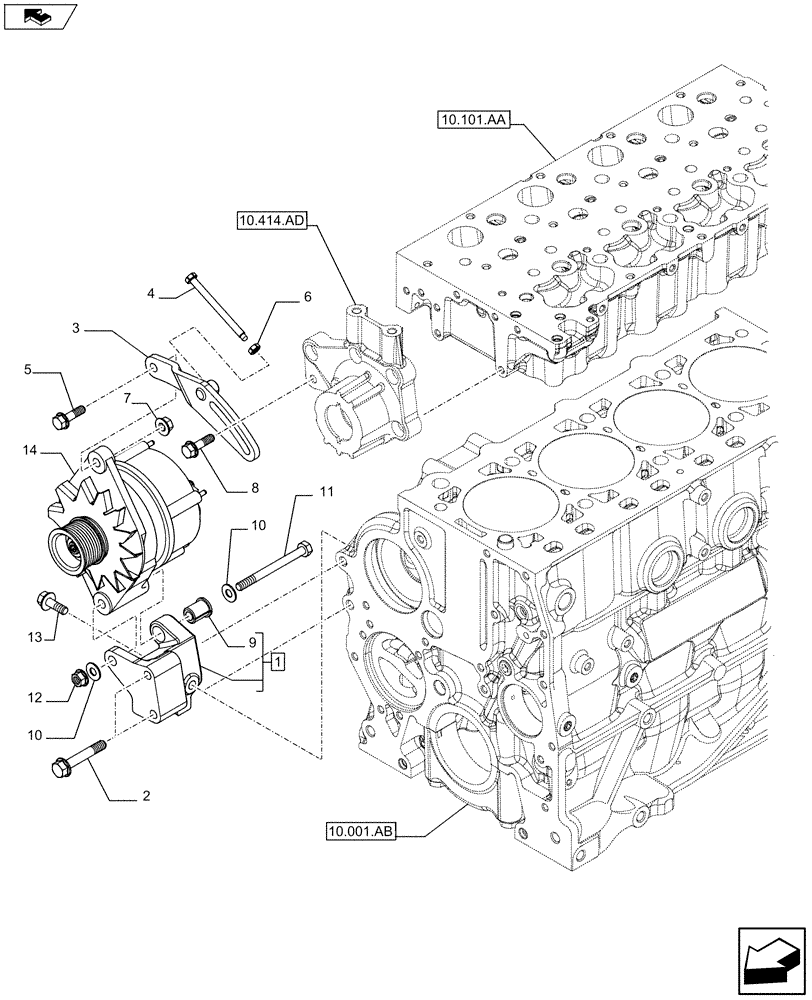

Запчасти Case F5CE5454B A005 (55.301.AB) - ENGINE, ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

504276997

BRACKET, SUPPORTING

Incl 9

1шт.

2

16587824

BOLT,Hex, M10 x 1.5 x 60mm

2шт.

3

504243953

BELT TENSIONER

1шт.

4

504302206

BOLT

1шт.

5

16586625

BOLT,M8 x 35mm

1шт.

6

17037921

NUT,Hex, M8 x 1.25

1шт.

7

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

1шт.

8

4895170

BOLT

1шт.

9

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.

10

17095125

WASHER

2шт.

11

15972224

SCREW,Hex, M10 x 1.25 x 120mm

1шт.

12

17044825

NUT,Hex, M10 x 1.25

1шт.

13

16587325

SCREW,Hex, M10 x 35mm

1шт.

14

2852185

ALTERNATOR,12V, 95A, W/ Pulley

1шт.
