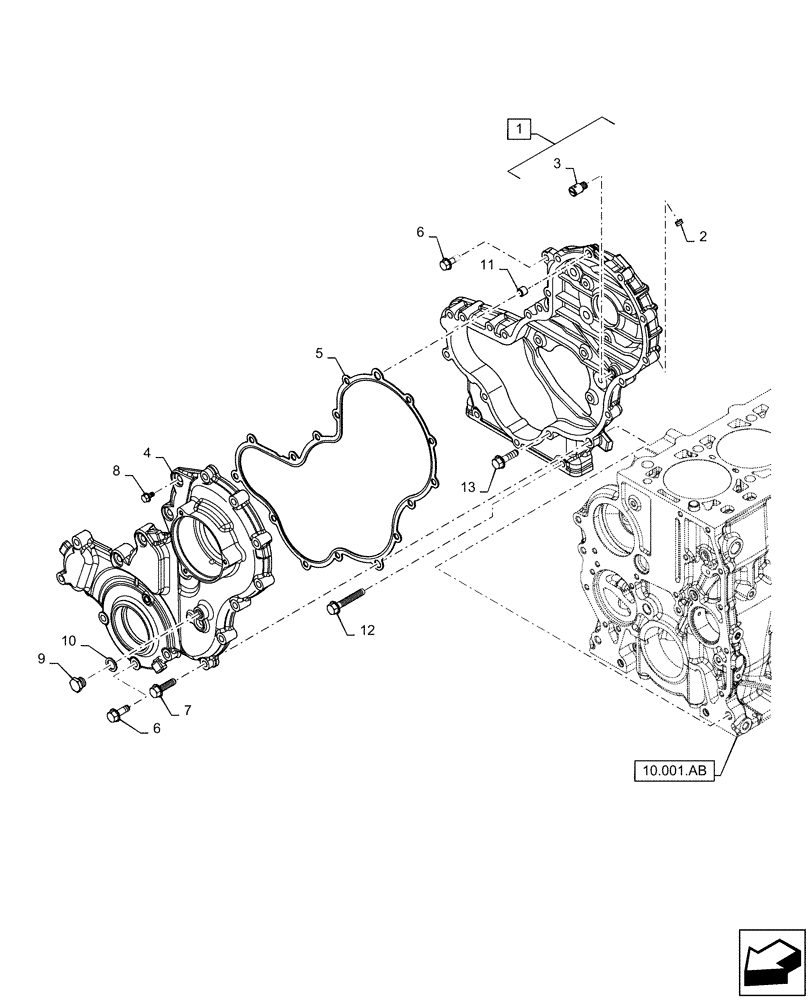

Запчасти Case F5CE5454B A005 (10.102.AK) - ENGINE BLOCK FRONT COVER (10) - ENGINE

1

504244214

COVER

Timing Gear Housing, Incl 2, 3

1шт.

2

504051236

PLUG,Threaded, 1/8"

1шт.

3

504204989

LUBE OIL NOZZLE

1шт.

4

504389774

Front Crankcase Cover

COVER

1шт.

5

504244287

GASKET

1шт.

6

16673735

BOLT,Hex, M8 x 1.25 x 25mm

4шт.

7

16586625

BOLT,M8 x 35mm

13шт.

8

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

9

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

10

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

1шт.

11

99435557

DOWEL,8.50mm Dia

4шт.

12

16586925

BOLT,M8 x 50mm

6шт.

13

98401723

BOLT,Hex, M8 x 1.25 x 12mm

5шт.

14

2995644

SEALANT

Not Illustrated

1шт.
