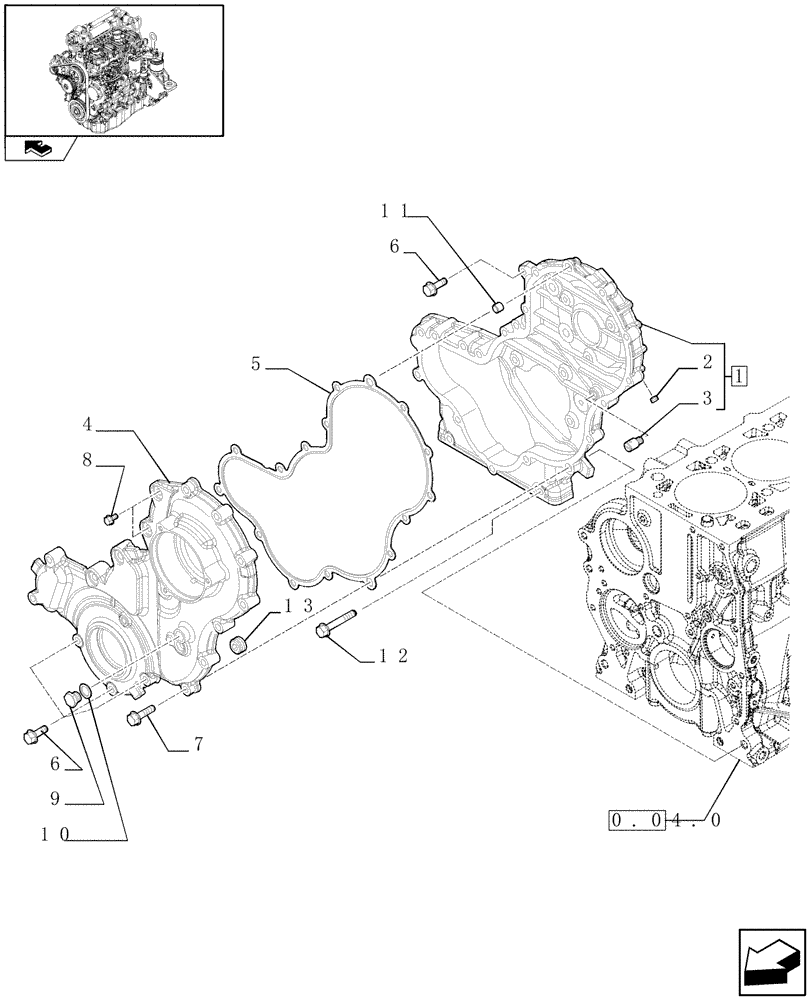

Запчасти Case F5CE5454B A001 (0.04.3[01]) - ENGINE BLOCK FRONT COVER (504183270)

1

504244214

COVER

- ASSY

1шт.

2

504051236

PLUG,Threaded, 1/8"

D.=1/8"

1шт.

3

504204989

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

4

504242762

COVER

1шт.

5

504244287

GASKET

1шт.

6

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25

3шт.

6

16586625

BOLT,M8 x 35mm

M8 x 35

2шт.

6

16586925

BOLT,M8 x 50mm

M8 x 50

6шт.

7

16586625

BOLT,M8 x 35mm

M8 x 35

11шт.

8

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

9

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

10

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

D. 14X20X1,5 mm

1шт.

11

99435557

DOWEL,8.50mm Dia

D. 8,5 mm

4шт.

12

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 50

6шт.

13

16882515

PLUG

1шт.
