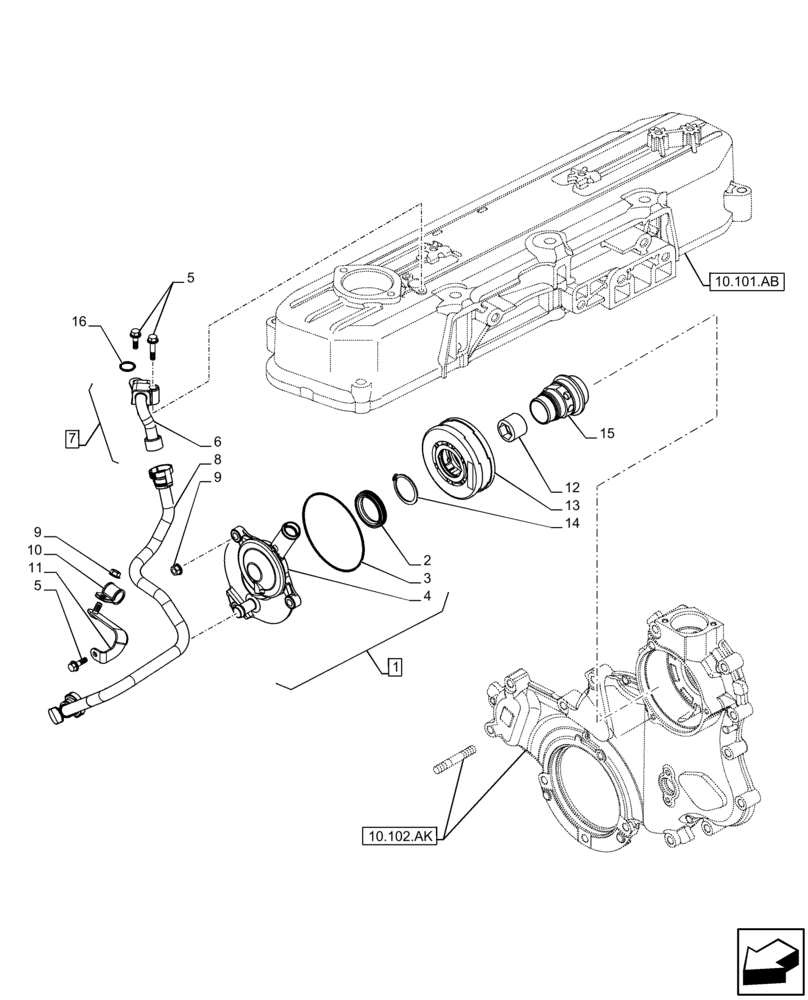

Запчасти Case F5BFL413D C001 (10.304.AP) - BREATHER (10) - ENGINE

1

5801542914

BREATHER

ASSY, Incl 1 - 4

1шт.

2

504050244

SHAFT SEAL

Breather

1шт.

3

504325903

O-RING,91.41mm ID x 3.47mm

3,47 x 91,41 mm

1шт.

4

NSS

NOT SOLD SEPARAT

Breather, Incl in 1

1шт.

5

16978124

BOLT,Hex, M6 x 14mm

3шт.

6

NSS

NOT SOLD SEPARAT

Tube, Breather, Incl in 7

1шт.

7

5801861272

PIPE

ASSY, Breather Parts, Incl 6, 16

1шт.

8

5801861271

PIPE

Breather

1шт.

9

17044625

NUT,Hex, M6

4шт.

10

17315290

CLAMP

D=14 mm

1шт.

11

5801567854

RETAINER

Breather

1шт.

12

5801363192

BUSHING

Breather

1шт.

13

504075145

ELEMENT

Breather

1шт.

14

16867073

SNAP RING

Breather

1шт.

15

5801572046

SHAFT

Breather

1шт.

16

17278390

O-RING

1шт.
