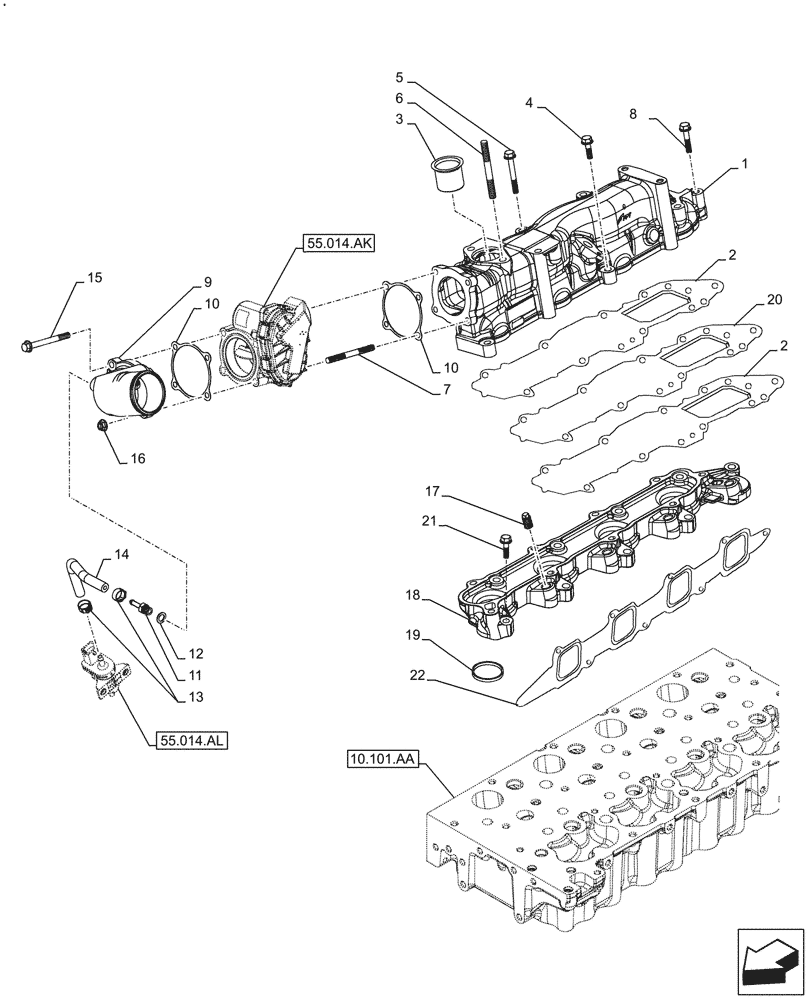

Запчасти Case F5BFL413D C001 (10.254.AM) - INTAKE & EXHAUST MANIFOLD (10) - ENGINE

1

5801715119

ELBOW

Intake & Exhaust Manifold

1шт.

2

5801705579

GASKET

Manifold

1шт.

3

504380983

FITTING

Manifold

1шт.

4

16727724

STUD

1шт.

5

4895432

SCREW,M8 x 1.25 x 70mm

6шт.

6

13518021

STUD,M8 x 70mm L

2шт.

7

16728524

STUD

2шт.

8

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

3шт.

9

504389181

INTAKE AIR HOSE

Manifold

1шт.

10

504387920

GASKET

Manifold

2шт.

11

5801376672

UNION

Manifold

1шт.

12

17749985

GASKET

Manifold

1шт.

13

18199070

MOUNTING CLIP

2шт.

14

5801404363

TUBE

Manifold

1шт.

15

16597524

BOLT,Hex, M6 x 65mm, Cl 8.8

2шт.

16

17044625

NUT,Hex, M6

2шт.

17

16592225

BOLT,M8 x 55mm

4шт.

18

5801701355

SPACER

Manifold

1шт.

19

5801363175

GASKET

Manifold

4шт.

20

5801705591

SPACER

Manifold

1шт.

21

16673835

BOLT,Hex, M8 x 30mm

5шт.

22

5801752064

GASKET

Manifold

1шт.
