Запчасти Case F5BFL413A B007 (10.001.AB) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

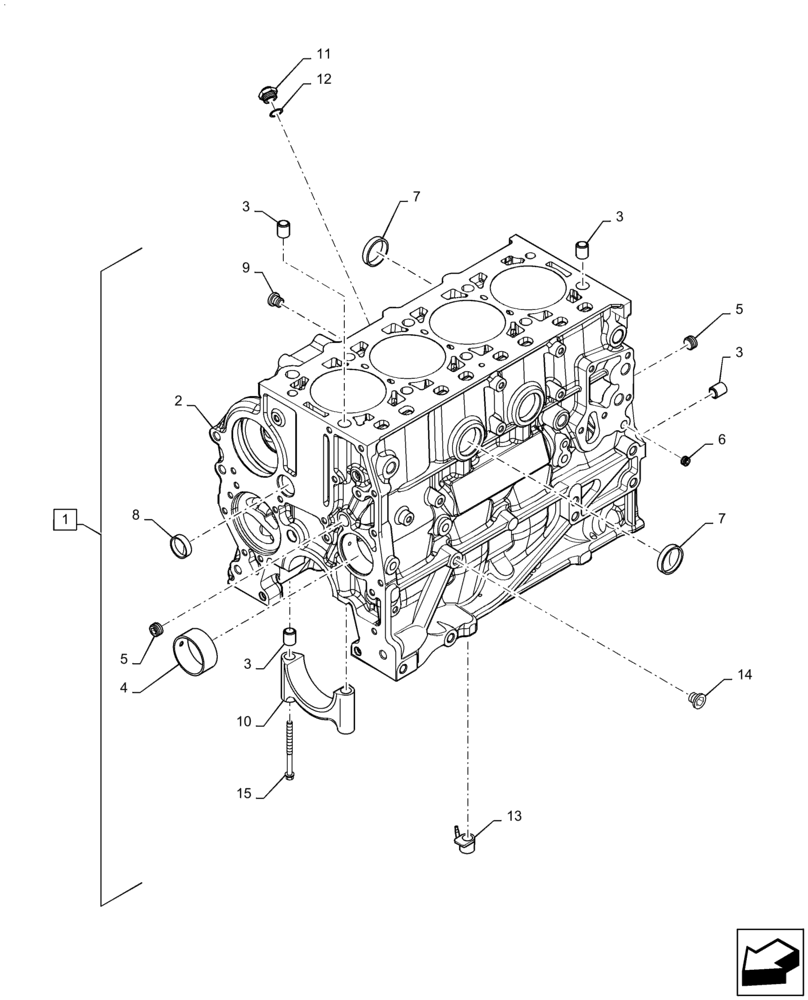

Схема запчастей Case F5BFL413A B007 - (10.001.AB) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE
9
3
4
7
5
13
10
14
7
11
8
15
12
2
3
6
3
1
5
3

Артикул

Название

Примечание

Количество

1

5801501613

CYLINDER BLOCK,4 Cylinders

ASSY, Incl 2 - 10, 15

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Block, Incl in 1

1шт.

3

7300019

DOWEL,0.75mm Thk

14шт.

4

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

Cylinder Block

1шт.

5

504051238

PLUG,Threaded, 3/8" Dia

Cylinder Block

3шт.

6

504138060

PLUG

Cylinder Block

4шт.

7

14329901

PLUG,M40, Tapered

Cylinder Block

5шт.

8

16990970

PLUG,Lock, 30mm Dia

Cylinder Block

1шт.

9

504016052

PLUG,M14 x 1.5

Cylinder Block

1шт.

10

NSS

NOT SOLD SEPARAT

Cylinder Block Support, Incl in 1

1шт.

11

504077652

SEALING WASHER,13mm ID x 19mm OD

1шт.

12

5801720267

UNION

Cylinder Block

1шт.

13

5801363466

LUBE OIL NOZZLE

Cylinder Block

4шт.

14

17917015

PLUG

Cylinder Block

1шт.

15

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

Выбрано товаров: 15
