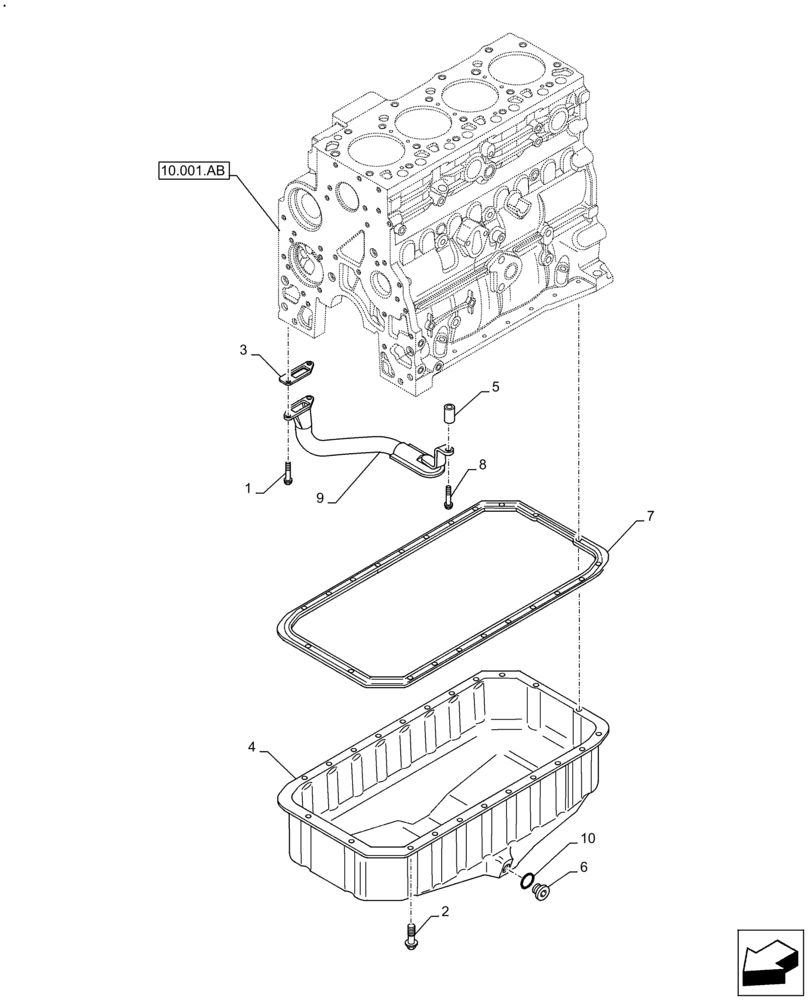

Запчасти Case F4HFE413W B003 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

22шт.

2

4895489

FLANGE BOLT,Hex, M8 x 1.25 x 110mm

2шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852281

ENGINE OIL PAN

1шт.

5

2852016

SPACER,11mm ID x 22mm OD x 39mm L

1шт.

6

2856086

PLUG

1шт.

7

2852012

OIL PAN GASKET SET

1шт.

8

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

1шт.

9

2852282

TUBE,211.4, 206.4 mm Length

1шт.

10

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.
