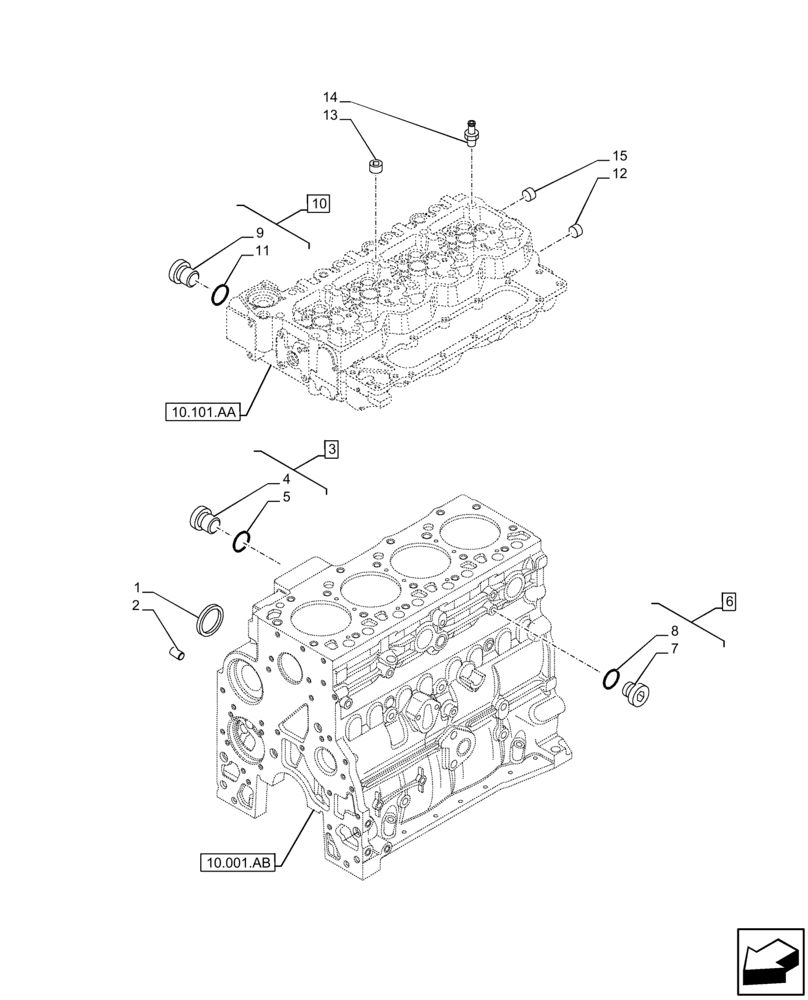

Запчасти Case F4HFE413V B001 (10.400.AE) - COOLANT HEATING LINES (10) - ENGINE

1

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

2

98405182

DOWEL

2шт.

3

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 8 - 9

2шт.

4

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

5

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

6

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 11 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

8

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

10

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 13, 15

2шт.

11

4895082

O-RING,19.3mm ID x 2.2mm Width

2шт.

12

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

12

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternative

1шт.

13

4895078

PIPE PLUG,1/2"-14

3шт.

14

47565455

FITTING,M12 x 1.5 x 20mm D

1шт.

15

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.
