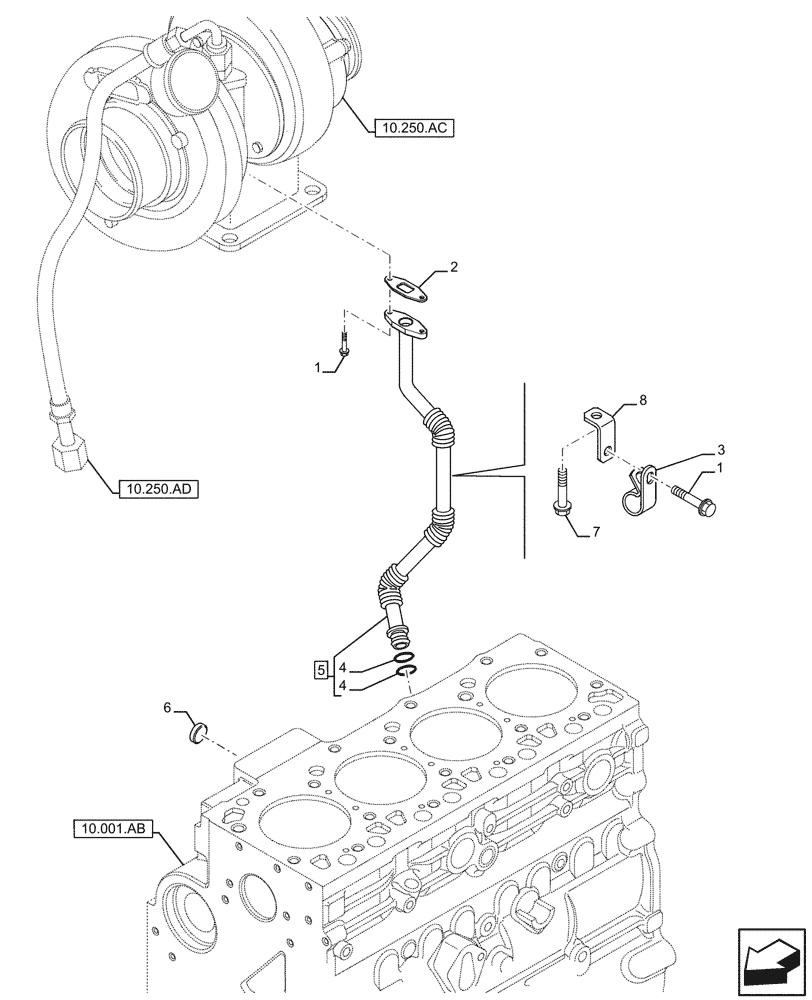

Запчасти Case F4HFE413V B001 (10.250.AE) - TURBOCHARGER OIL RETURN LINE (10) - ENGINE

1

2852101

FLANGE BOLT,Hex, M6 x 16mm

3шт.

2

4899467

GASKET

1шт.

3

2852500

CLAMP

1шт.

4

17281681

O-RING,13.90mm ID x 2.60mm

2шт.

5

5801679372

ASSY, Incl 4

PIPE

1шт.

6

4895089

PLUG,0.886" L

1шт.

7

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

8

47669618

BRACKET

1шт.
