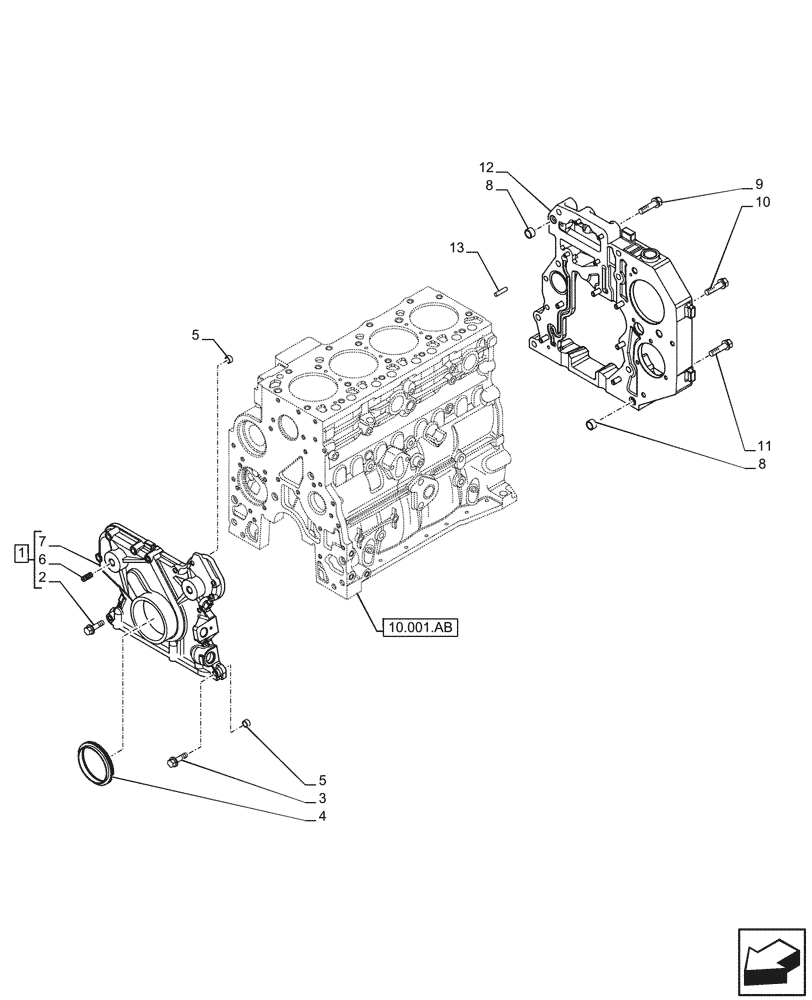

Запчасти Case F4HFE413P A008 (10.102.AK) - CRANKCASE, COVER (10) - ENGINE

1

4897024

COVER

ASSY, Incl 2, 6, 7

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

5шт.

3

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

8шт.

4

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

5

4891209

DOWEL,M13 x 8 L

2шт.

6

2852208

INSERT

2шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

8

4899026

DOWEL,M18 x 10

2шт.

9

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

10

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

10

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

11

4896939

SCREW,M10 x 1.5 x 50mm

3шт.

12

504280320

HOUSING,HOUSING

1шт.

13

NS

NOT SERVICED

Plug

1шт.
